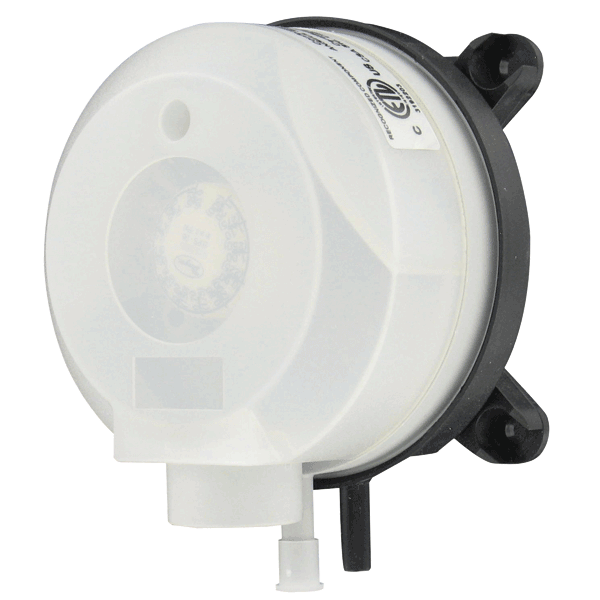

Series EDPS HVAC Differential Pressure Switch

Brand: Dwyer Instruments, LLC

The Series EDPS Adjustable Differential Pressure Switch is designed for pressure, vacuum, and differential pressures.

The dual scaled adjustment knob in inches water column and pascals allows changes to the switching pressure to be made without a pressure gauge.

The EDPS is available with settings from 0.08" w.c. (20 Pa) up to 16" w.c. (4000 Pa). The silicone diaphragm and PA 6.6 body make the series EDPS ideal for use with air and other noncombustible gases.

The compact size, adjustment knob and meeting the UL508 standard make the EDPS the perfect choice for H.V.A.C. applications.
Features
  • Adjustment know changes switching pressure easily with a pressure gauge reducing components for application
  • Low cost device makes it an excellent solution in BAS and HVac applications requiring duct control and monitoring
  • Relay contact allows simple integration with DDC or building systems

1 - 12 of 18 Part Numbers
EDPS-03-1-N
EDPS-03-1-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.20 to 2.0
  • Electrical Connection - 1/2” NPT
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - No Kit Required
EDPS-03-2-N
EDPS-03-2-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.20 to 2.0
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - No Kit Required
EDPS-03-2-NC
EDPS-03-2-NC
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.20 to 2.0
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - Installer Kit
EDPS-04-1-N
EDPS-04-1-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.12 to 1.6
  • Electrical Connection - 1/2” NPT
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
EDPS-04-2-N
EDPS-04-2-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.12 to 1.6
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - No Kit Required
EDPS-04-2-NC
EDPS-04-2-NC
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.12 to 1.6
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - Installer Kit
EDPS-05-1-N
EDPS-05-1-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.80 to 4.0
  • Electrical Connection - 1/2” NPT
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
EDPS-05-2-N
EDPS-05-2-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.80 to 4.0
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - No Kit Required
EDPS-05-2-NC
EDPS-05-2-NC
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 0.80 to 4.0
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - Installer Kit
EDPS-06-1-N
EDPS-06-1-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 2.0 to 10.0
  • Electrical Connection - 1/2” NPT
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - No Kit Required
EDPS-06-2-N
EDPS-06-2-N
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 2.0 to 10.0
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - No Kit Required
EDPS-06-2-NC
EDPS-06-2-NC
  • Base Model - Adjustable Differential Pressure Switch
  • Pressure Range - Inches WC: 2.0 to 10.0
  • Electrical Connection - M20 x 1.5
  • Electrical Output - SPDT 0.1 A, 250 Vac, 50/60 Hz, Max. Switching Rate: 6 Cycles/min
  • Options - Installer Kit
1 - 12 of 18 Part Numbers

Specifications

Adjustment Type

  • Field Adjustable

Ambient Temperature Range

  • Process Ambient Temperature

Approvals & Certifications

  • CE
  • CSA
  • ETL Approved to UL 508
  • RoHS

Deadband, Approximate

  • Inches WC: 0.05 to 1.4

Diaphragm Material

  • Silicone Rubber

Electrical Connectors

  • 1/2” NPT Female
  • Screw Terminal Block. M20 x 1.5 with Cable Strain Relief

Electrical Rating

  • 1.0 A Resistive / 0.4 A Inductive / 250 Vac, 50/60 Hz

Enclosure, Body Material

  • PA 6.6
  • Polystyrene

Environmental Protection

  • IP54
  • NEMA 3 / IP54

Mounting

  • Vertically, with Pressure Connections Pointing Downwards

O-Ring Material

  • Silicone Rubber

Proof Pressure

  • Inches WC: 40

Set Point - Decreasing

  • Inches WC: 0.08 to 20.0

Set Point - Increasing

  • Inches WC: 0.08 to 20.0

Switch Type

  • SPDT

System Pressure

  • 40” WC
  • Inches Hg: 2.95
  • kPa: 10

Tube Connection

  • 5/16˝ (7.94 mm) Outside Diameter Tubing, 1/4˝ (6.0 mm) Inside Diameter Tubing

  • Monitoring Air Filters and Ventilators.
  • Monitoring Industrial Cooling-Air Circuits.
  • Overheating Protection for Fan Heaters.
  • Monitoring Flows in Ventilation Ducts.
  • Controlling Air and Fire-Protection Dampers.
  • Frost Protection for Heat Exchanges
