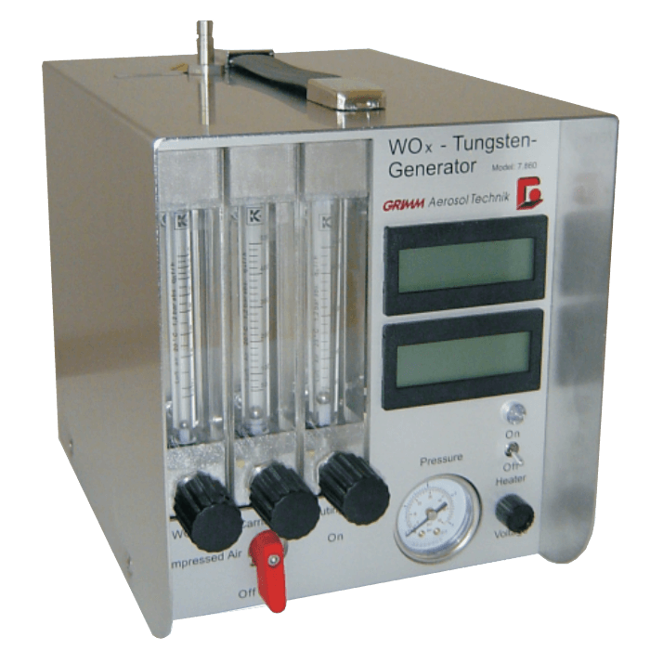

GRIMM Model 7.860 Nano Aerosol Generator
Brand: DuragThe Generator Model 7.860 is a Tungsten aerosol generator, used to produce extreme small airborne particles.
The fundamental principle is the use of a heat able Tungsten wire, which generates at high temperatures a large amount of small dioxide particles.
The unit is designed in accordance with the German VDI-Standard 3491.
Specifications
Brand
Applications
- Determination of the Efficiencies of Condensation, Optical Particle Counters
- Fine Filter Efficiency Test
- Inhalation & Toxicology Studies
- Mixing & Coating Processes (e.g. for Ceramic Technology)
Materials of Construction
- Tungsten Wire
Measuring Range
- Size Range: 1.2 to 20 Nm
Power Supply
- 85-264 Vac / 47 to 440 Hz, Max.
Pressure Range
- Security Valve Will Open at psi: 2.9 to 4.35 (kPa: 20 to 30, bar: 0.2 to 0.3)
Supply Pressure
- Air (Oil & Particle Free) - psi: 29 to 87 (kPa: 200 to 600, bar: 2 to 6)
