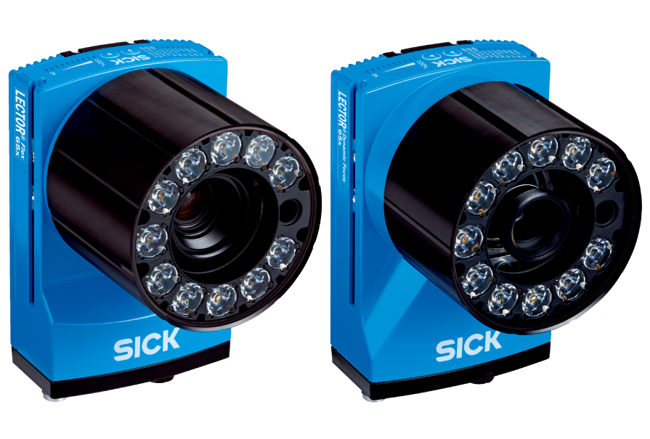

Lector65x Image-Based Code Reader

Brand: Sick AG
Add Product to My Catalog

Maximum performance and optimized throughput: The Lector65x image-based code reader from SICK stands up to the challenges of logistics and factory automation.

Thanks to its 40 Hz frame repetition rate and real-time decoding, it reliably identifies 1D, 2D, and directly marked codes at the highest possible speed.

An image resolution of 2/4 megapixels gives it a large field of view.

In combination with its dynamic focus, the highest levels of flexibility are achieved for code positioning, object height, and transport speed.

The intuitive device equipment – featuring function buttons, auto-setup, aiming laser, an acoustic feedback signal, and a green feedback LED – reduces the amount of work required for training and installation.

The microSD memory card can be used to store images or backup copies of parameters.

Thanks to SICK's 4Dpro feature, the Lector65x can be integrated into numerous industrial networks.
Features
  • Highly flexible code position, object height, and transport speed due to a large field of view and dynamic focus
  • Cost-effective, straightforward, modular integration of multiple devices adapted to the width of the conveyor belt
  • Minimum training and installation work due to intuitive device equipment that includes function buttons, auto setup, integrated illumination, an aiming laser, an acoustic feedback signal, and a green feedback LED
  • Intelligent decoding algorithms ensure maximum reading performance and high package throughput, even with codes that are difficult to read
  • SICK 4Dpro platform facilitates quick and easy integration into numerous industrial networks

1 - 12 of 19 Part Numbers
1060892
1060892
  • Variant - Main Unit
  • Sensor Resolution - 2,048 px x 2,048 px
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Type - V2D654R-MCXXA6
1060893
1060893
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 2,048 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 54 mm, f/8
  • Type - 2D654R-MEWHA6
1063229
1063229
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 2,048 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 54 mm, f/8
  • Type - V2D654R-MEWHF6 for Systems
1063404
1063404
  • Variant - Main Unit
  • Sensor Resolution - 2,048 px x 1,088 px
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Type - V2D652R-MCXXA6
1063405
1063405
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 1,088 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 54 mm, f/8
  • Type - V2D652R-MEWHA6
1068496
1068496
  • Variant - Main Unit
  • Sensor Resolution - 2,048 px x 2,048 px
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Type - V2D654R-MCXXF6 for Systems
1068680
1068680
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 2,048 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 40 mm, f/8
  • Type - V2D654R-MEWKA6
1068681
1068681
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 1,088 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 40 mm, f/8
  • Type - V2D652R-MEWKA6
1070743
1070743
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 2,048 px
  • Internal Lighting - Blue
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 54 mm, f/8
  • Type - V2D654R-MEBHF6 for Systems
1071727
1071727
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 1,088 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 54 mm, f/8
  • Type - V2D652R-MEWHF6 for Systems
1071728
1071728
  • Variant - Main Unit
  • Sensor Resolution - 2,048 px x 1,088 px
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Type - V2D652R-MCXXF6 for Systems
1072316
1072316
  • Variant - Complete Device
  • Sensor Resolution - 2,048 px x 2,048 px
  • Internal Lighting - White
  • Code/Data Cards - 1D Codes, Stacked, 2D Codes
  • Lens - C-Mount, 1", 40 mm, f/8
  • Type - V2D654R-MEBKA6
1 - 12 of 19 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Sensor Resolution

  • 2,048 x 1,088 pixels
  • 2,048 x 2,048 pixels

Scanning Frequency

  • 70 Hz / 40 Hz

Reading Distance

  • 300 to 2,500 mm

Enclosure Rating

  • IP65

Communication

  • Ethernet
  • PROFINET
  • EtherNet/IP
  • Serial: RS-232, RS-422
  • CAN
  • PROFIBUS DP
  • USB

Weight

  • 635 g / 963 g

Documentation

Data Sheets

Product Manuals

Brochure
