Expansion Controllers - IQAN-XC21/XC22/XC23
Brand: Parker HannifinParker’s IQAN-XC21/XC22/XC23 expansion modules are a subset of the collection of expansion/slave controllers that can be added to an IQAN system.

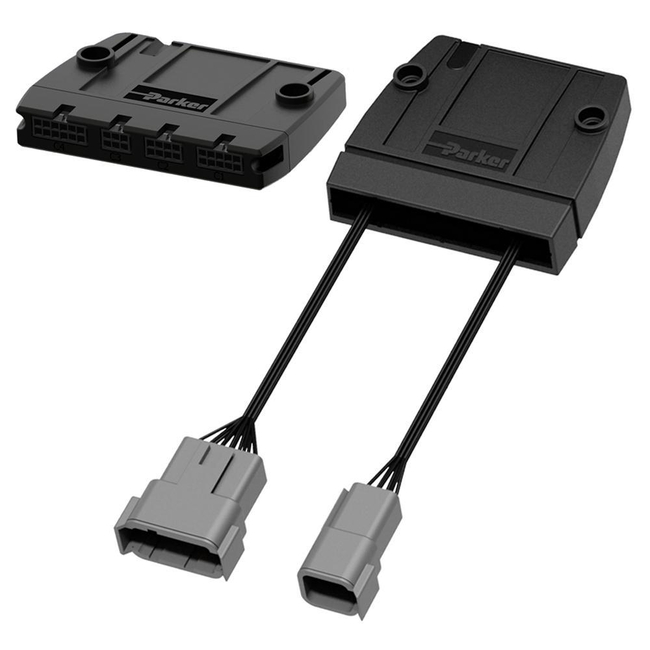

The housing is designed for stacking multiple modules, to provide a high density of I/O in a small footprint. The IQAN-XC21 is designed for in-cab use on mobile machinery.
The super small size makes it perfect for use in armrest controls. It uses four Molex Micro-fit connectors of varying pin density to prevent wiring mix-ups.
The IQAN-XC22 and IQAN-XC23 are designed for outdoor use on mobile machinery. The sealed housing uses 2 or 3 keyed Deutsch DTM connectors to prevent wiring mix-ups.
The IQAN-XC21, XC22 and XC23 have digital inputs for connection to switches. The flexible inputs can easily be configured as frequency or encoder inputs for measuring speed and position.
The XC21 and XC23 also have voltage inputs for connection of Hall-effect sensors and joysticks.
Features- Monitors up to 20 inputs - analog, digital or frequency
- Small footprint for use in armrests or other tight spaces
- Slave unit requires no programming
- Sealed versions for outdoor use
- CAN communication
Specifications
Brand
Approvals & Certifications
- 2004/108/EC
Controller Type
- Slave / Expansion Module
Electrical Connectors
- Molex Micro-Fit 3.0, Deutsch DTM
Housing Material
- Plastic
IP Protection Rating
- 40, 66
Markets
- Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Number of Inputs
- 20, 12
Number of Outputs
- 8
Output Current Rating (mA)
- 300
Voltage (Vdc)
- 9-32
Working Temperature (°C) Maximum
- 70° C
Working Temperature (°C) Minimum
- -30° C
- Adapt multiple dash panel inputs to CAN
- Relay controller
- Auxiliary hydraulics control
