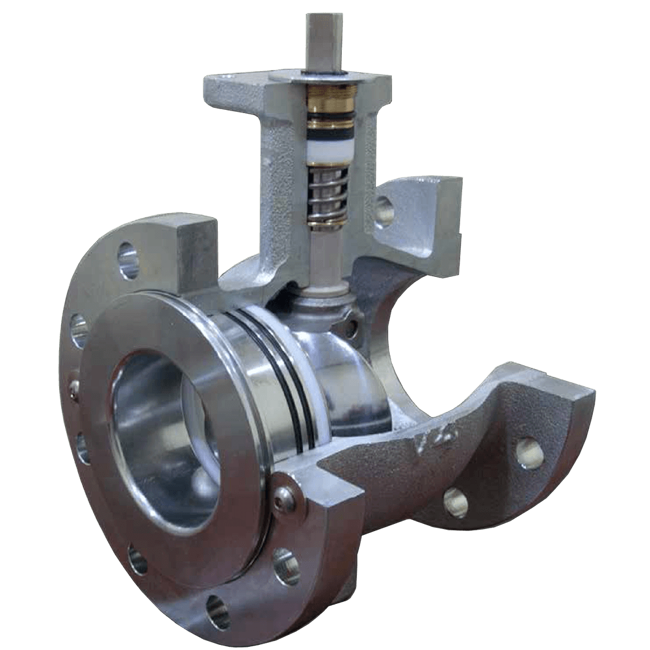

V Series Segmented Ball Valve
Brand: Valve SolutionsValve Solution’s Series V High Performance Segmented Ball Valve is a high capacity control valve with precise control and superior close-off for liquid, gas and steam applications.
The VSI’s Series V high performance ball valve is ideal for high pressure high flow service where control is a priority.
The V-notched stainless steel ball allows for a very high control range for this equal percentage flow characteristic valve.
The soft seat TFM material also enables the valve to close off with class VI rating which means zero leakage.
Sizes range from 1″ to 12″ for large flow applications where butterfly valves don’t adequately control.
The 1″ thru 2″ valve bodies are multi-rated for ANSI 150 and ANSI 300. For sizes 3″ and larger, ANSI 150 and ANSI 300 are available.
Specifications
Brand
Approvals & Certifications
- ANSI Class VI, Multi-Rated ANSI 150/300
- ASME B16.10
Ball Material
- 304 Stainless Steel - Segmented Ball)
Bearing Material
- PEEK
Enclosure, Body Material
- Cast 304 Stainless Steel
- WCC
Flange Material
- Packing Flange: Brass (C3604)
Flange Size - 3” (DN 80)
- 3" (DN 80) - 150#
- 3" (DN 80) - 300#
Flange Size - 4” (DN 100)
- 4" (DN 100) - 150#
- 4" (DN 100) - 300#
Flange Size - 6” (DN 150)
- 6" (DN 150) - 150#
- 6" (DN 150) - 300#
Flow Rate
- 0.04 to 850 Cv
Packing Material
- Packing Follower: Graphite
- Packing Washer: 304 Stainless Steel
Pressure Rating
- psi: 300 (kPa: 2,068, bar: 20.68)
Ring Material
- Teflon (Packing Ring)
Rotation
- 10° to 90°
Screw Material
- 304 Stainless Steel
Seat / Seal Material
- 304 Stainless Steel
- Carbon Steel (S45C)
- Seat Retainer Seal: ALFAS
- TFM-1700
Shaft Material
- 304 Stainless Steel (Folllower Shaft, Drive Shaft)
- PEEK (Shaft Material)
Torque
- 130 in/lb
- 200 in/lb
- 40 in/lb
- 400 in/lb
- 650 in/lb
- 80 in/lb
Valve Type
- 2-Way
- 3-Way
