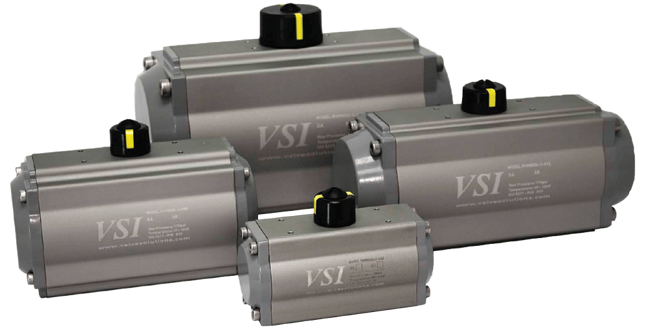

C Series Pneumatic Actuator
Brand: Valve SolutionsThe Series C high pressure pneumatic rack and pinion actuator is available in thirteen frame sizes to match everything from the smallest ball valve up to 48″ butterfly valves.
Each frame size can be supplied or field converted to either double acting or spring return.
The hard anodized body and internals together with piston guides and bearings assure high-cycle life and efficiency.
Features- Die Cast Aluminum twin rack pistons for fast operations and a long life cycle.
- High precision pinion to ISO5211, DIN3337, NAMUR standards.
- Double acting operation allows for 90 degrees of rotation.
- Durable hard anodized Aluminum body.
- High visibility mechanical position indicator.
- Independent external adjustable stops.
- Double Acting and Spring Return Models available.
Specifications
Brand
Air Supply
- psi: 40 to 130 (kPa: 276 to 1,000, bar: 2.8 to 10)
Bearing Material
- Plastic
BSP Connection
- G 1/2” Female
- G 1/4” Female
Cap Material
- Cast Aluminum (ADC12) - End Cap
Enclosure, Body Material
- Aluminum Alloy
Media
- Compressed Filtered Air, Not Necessarily Lubricated
O-Ring Material
- NBR
Pinion Material
- Alloy Steel (45#)
Piston Material
- Cast Aluminum (101A)
- Plastic
Plug Material
- NBR
Ring Material
- Stainless Steel Snap Ring
Screw Material
- 316 Stainless Steel
Spring Material
- Spring Steel
Temperature Range
- -20° to 80° C (-4° to 176° F)
