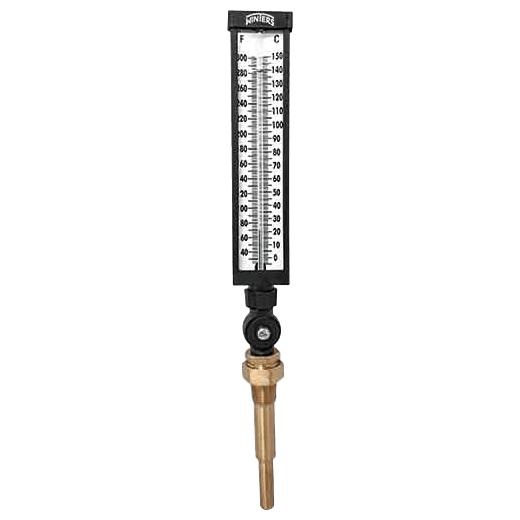

TIM/TIM-LF Industrial 9" Thermometer
Brand: Winters Instruments
Features
- Widely specified in the industrial and commercial plumbing trade
- Includes a separable brass or lead free brass thermowell
- 3.5” (90mm) and 6” (160mm) stem
- Available in aluminum or Valox® (9”) case
- Organic filled tube (magnifying)
- Dual scale (°F & °C)
- Adjustable angle connection and 360° case rotation for easy installation
- Graphite filled bulb chamber for maximum heat conduction
- ASME B40.200 and ASTM E2251 compliant
- RoHS compliant (with 304 SS or 316 SS thermowells only)
- CAN/CGSB-14.4-M88 compliant
- ±1% accuracy
Specifications
Brand
Accuracy
- ± 1 %
Approvals & Certifications
- RoHS Applies Only to 304 & 316 Stainless Steel (SST) Thermowells
Connection Style
- Adjustable Angle Connection
Enclosure, Body Material
- Aluminum, Impact Resistant
- Valox, Impact Resistant
Environmental Protection
- IP54
Fill Material
- Graphite Filled Bulb Chamber For, Max.
Lens
- Glass Lens
Materials of Construction
- Bulb Chamber: Tapered Cast Aluminum with Graphite Fill
- Scale: Aluminum, Painted White with Black Markings
- Tube: Glass (Magnifying), Organic Green Fill Fluid (Blue, Red Fill Fluid Colours Optional)
NPT Connection
- 3/4” NPT Male with Thermowell
Rotation
- Case: 360° for Easy Installation
Size
- Scale: 9” (230 mm)
Stem Length
- 3.5” (90 mm)
- 6” (150 mm)
Temperature Range
- -40° to 150° C (-40° to 300° F)
Thermowell
- TIM, TIM-LF (Lead Free): 3/4” Brass, Separable Socket
- TIM: 304 Stainless Steel (SST)
- TIM: 316 Stainless Steel
UNF/UNC Connection
- 1-1/4”-18 Male UNEF Swivel Nut (No Thermowell)
- New Construction
- Plumbing
- Water Lines
- Boilers
- Heating
- Ventilation
- Air Conditioning
- Lead Free Version for Potable Water System
