Vega Vibrating Level Switch, Vegawave 63

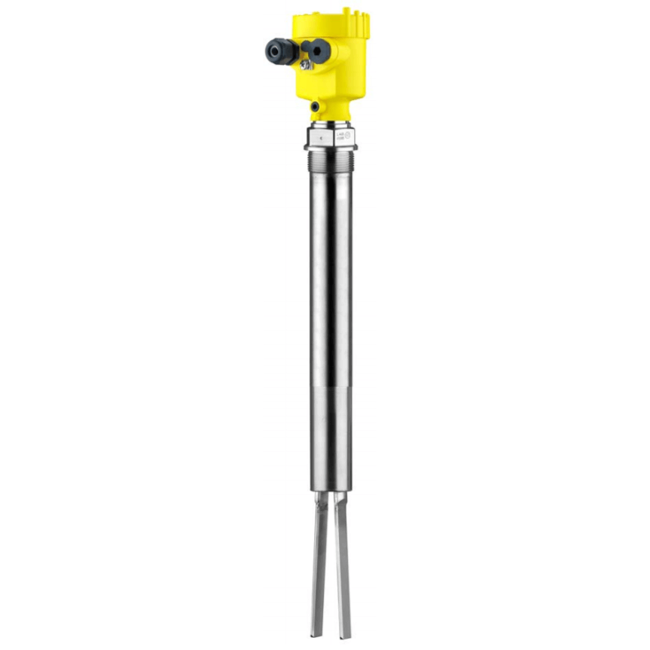

Vegawave 63 Vibrating Level Switch

Brand: VEGA
Add Product to My Catalog

The Vegawave 63 is a level switch for universal use in powders and fine-grained bulk solids.

The Vegawave 63 detects reliably and robust the min. or max. level.

The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density.

The position of the switching point is determined via the tube extension
Features
  • Minimum time and cost expenditure thanks to simple setup without medium
  • Reliable function due to product-independent switching point
  • Low maintenance costs thanks to robust design

Specifications

Brand

Ambient Temperature Range

  • -40° to 80° C (-40° to 176° F)

Applications

  • Detects Reliably & Robust the Min. or, Max.
  • Used as Level Switch for Universal use in Powders & Fine-Grained Bulk Solids

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IEC
  • SIL

BSP Connection

  • G 1-1/2”
  • 1-1/2” BSPT Male

Cable Entry

  • M20 x 1.5

Electrical Connectors

  • Cable Gland

Enclosure, Body Material

  • Aluminum
  • Plastic
  • Stainless Steel

Environmental Protection

  • IP67

Flange Size - 2” (DN 50)

  • 2” (DN 50) - ASME Class 150
  • PN 40

Flange Size - 3” (DN 80)

  • 3” (DN 80) - ASME Class 150

Flange Size - 4” (DN 100)

  • 4” (DN 100) - ASME Class 300
  • PN 16

Frequency

  • 50/60 Hz

NPT Connection

  • 1/2” NPT
  • 1-1/2” NPT

Operating Voltages

  • 20-253 Vac

Output Format

  • Relay Output
  • Transistor Output

Output Function

  • NAMUR Output

Power Requirement

  • 10-400 mA

Pressure Range

  • psig: -14.5 to 363 (kPa: -100 to 2,500, bar: -1 to 25)

Process Temperature

  • -50° to 250° C (-58° to 482° F)

Response Time

  • 0.5 second - Switching Delay when being Covered
  • 1 second - Switching Delay when being Uncovered

Seat / Seal Material

  • Klingersil C 4400

Sensor, Probe Connection

  • 2-Wire

Size

  • Clamp: 2”

Storage Temperature

  • -40° to 80° C (-40° to 176° F)

Wetted Materials

  • 316L Stainless Steel

Documentation

Data Sheets

Catalogs
