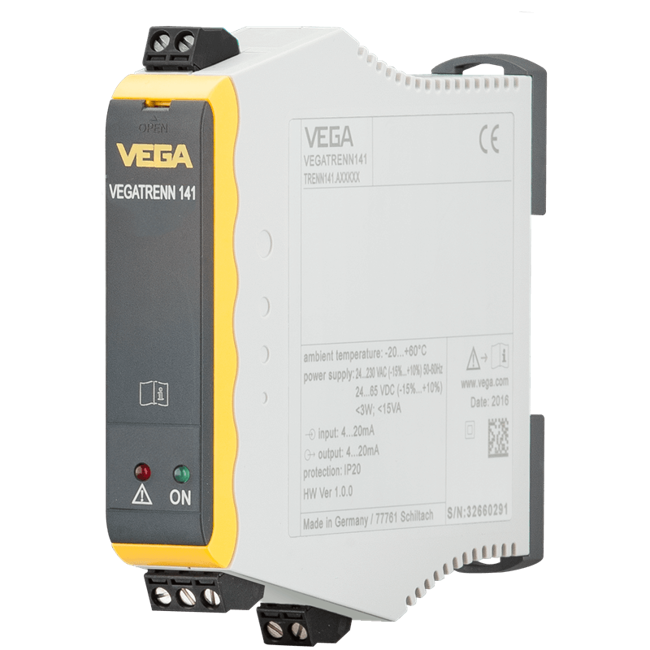

Vegatrenn 141 Channel Separator
Brand: VEGASingle Channel Separator for 4-20 m/HART Sensors.
Features- Simple installation though carrier rail mounting as well as detachable, coded terminals
- Universally Applicable Ex Separators for all 4-20 mA/HART Sensors
- Complete HART permeability enables free access to sensor settings
Specifications
Brand
Ambient Temperature Range
- -20° to 60° C (-4° to 140° F)
Approvals & Certifications
- CE
- EN 61326
- Ex
- IEC
Calibration
- 25° C (77° F) Calibration Temperature
- 4 mA
Communication
- HART
Consumption
- 3 W (15 VA)
Display
- LED Display
Electrical Connectors
- 0.25 mm² AWG 23 (Wire Cross Section)
- DIN EN 50022-60715
- Screw Terminal (Connection Terminals)
Enclosure, Body Material
- Polycarbonate PC-FR
Environmental Protection
- IP20
Humidity
- 20 to 85 % Relative Humidity
Input Impedance
- Ohms: 230
Linearization
- < 0.1 %
Load Limit
- Ohms: 600, Max.
Mounting
- 50 mm
- ISO 4180
Operating Voltages
- 24-230 Vac
- 24-65 Vdc
- 50/60 Hz (Nominal Voltage Vac)
Output
- 4-20 mA
Resistance
- 5.1 K Vdc
Storage Temperature
- -40° to 70° C (-40° to 158° F)
Supply Voltage
- 5.1 K Vdc
