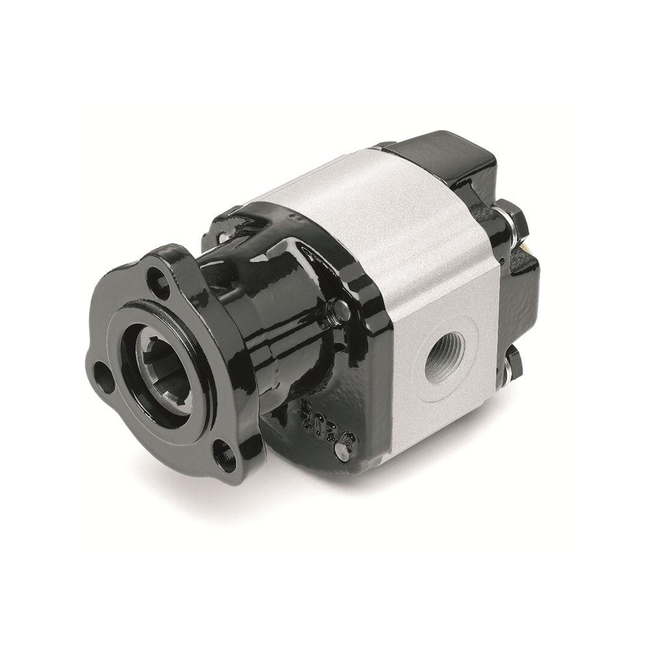

Aluminum Pumps - Series GPA - OBSOLETE
Brand: Parker HannifinParker's Aluminum Pump GPA Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction.
Specifications
Brand
Body Material
- Aluminum
Case Drain Option
- Yes/No
Charge Pump Option
- Yes/No
Circuit Type
- Open
Configuration
- Single / Tandem / Multiple
Control Method
- Consult Parker
Energy Recovery Capable
- No
Filtration Option
- No
Fluid Type
- Standard Hydraulic Fluid
Maximum Displacement (cm3/rev)
- 19
Maximum Displacement (inch3/rev)
- 1.16
Maximum Flow (gpm)
- 7.92
Maximum Flow (Lpm)
- 30
Maximum Fluid Temperature (°C)
- 120° C
Maximum Fluid Temperature (°F)
- 248° F
Maximum Noise Level (dBA)
- Consult Parker
Maximum Operating Pressure (bar)
- 250
Maximum Operating Pressure (psi)
- 3625
Maximum Radial Shaft Load (kg)
- Consult Parker
Maximum Radial Shaft Load (Lbs)
- Consult Parker
Maximum Speed (rpm)
- 2000
Maximum Viscosity (SUS)
- 4664
Maximum Weight (kg)
- 5.4
Maximum Weight (Lbs)
- 11.88
Media
- Hydraulic
Minimum Fluid Temperature (°C)
- -40° C
Minimum Fluid Temperature (°F)
- -40° F
Minimum Viscosity (SUS)
- 38
Mounting Option
- ISO
Port Connection
- BSPP
Port Connection Type
- Consult Parker
Porting Location
- Side Ports / Rear Ports
Pump Technology
- Gear
Pump Type
- Aluminum
Rotation
- Clockwise / Counter Clockwise / Bi-Rotational
Sensor Type
- Consult Parker
Shaft Type
- ISO
Thru-Drive Capability
- Yes
