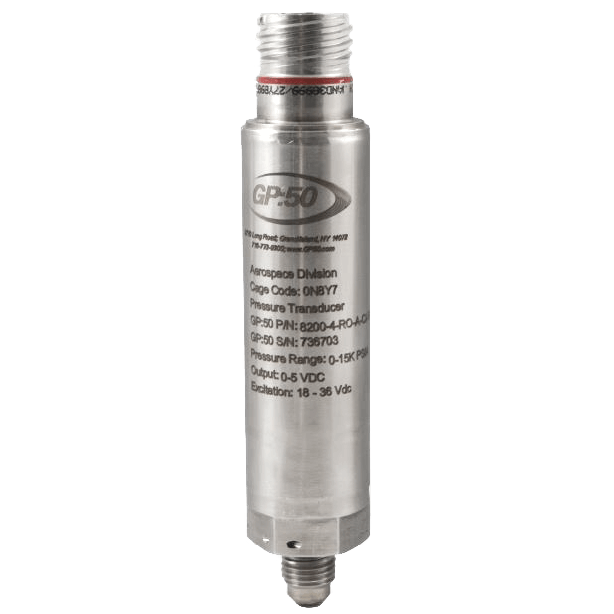

Model 8200 Pressure Transducer
Brand: GP:50 New York Ltd
Features
- Output Signal: 0 to 5 Vdc, 0 to 10 Vdc
- Excitation Voltage: 5 Vdc, 12 Vdc, and 18 to 36 Vdc
- Pressure Range: 0 to 5,000 psi (3.4 to 344.7 bar, 0 to 344.7 kPa)
- Burst Pressure: 3 times FSO
- Proof Pressure: 1.5 times FSO (25 psia minimum)
- Electrical Connections: PTIH-10-6
- Process Connection: AS5202-04
- Temperature Range:
- Operating: -29° to 88°C (-20° to 190°F)
- Compensated: -23° to 82°C (-10° to 180°F)
- Static Accuracy: <±0.08% FSO
- Materials of Construction:
- Wetted Parts: 316 Stainless Steel
- Housing: 316L Stainless Steel
- Sensor: 15-5 PH Stainless Steel
Specifications
Brand
Accuracy
- < ± 0.08 FSO
- Thermal Error: ± 0.225 % of FSO at 38° C (100° F)
- Total Error Band: ± 0.5 % of FSO (Includes All 5 Parameters)
Ambient Temperature Range
- -29° to 88° C (-20° to 190° F)
Burst Pressure
- Secondary Containment: 4,500 psi (310 bar, 31,000 kPa) for Ranges ≥ 300 psi
Compensated Temperature
- -23° to 82° C (-10° to 180° F)
Constant Acceleration
- 12 G
Electrical Connectors
- Bendix PTIH-10-6P
Enclosure, Body Material
- 316L Stainless Steel
Hysteresis
- < ± 0.05 FSO
Linearization
- < ± 0.05 FSO
Output
- 0-10 Vdc
- 0-5 Vdc
Pressure Range
- bar: 0.2 to 1,034
- kPa: 0 to 103,421
- psi: 0 to 15,000
Pressure Type
- Absolute
- Gauge
- Sealed Gauge
- Vacuum
Proof Pressure
- 1.5 x FSO (25,000 psia min.)
Repeatability
- < ± 0.04 FSO
Response Time
- 500 ms
Sensor, Probe Material
- 632 Stainless Steel
Shock
- 100 G’s Peak-to-Peak
Supply Voltage
- +12 V
- +15 V
- 18 V to 36 Vdc
Vibration
- Random Vibration: > 25 G RMS (20 Hz to 2000 Hz)
- Sinusoidal Vibration: > 7.5 G’s 5 Hz to 100 Hz
Wetted Materials
- 316 Stainless Steel
