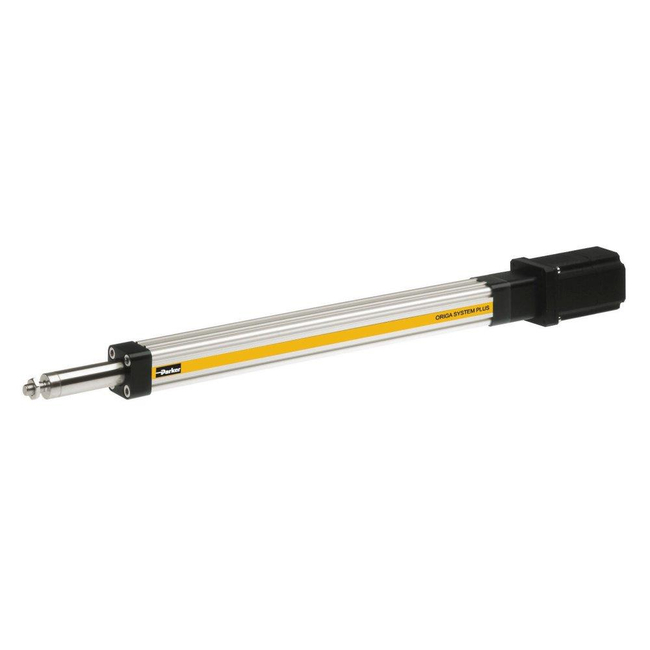

OSPE25-STR Trapezoidal Screw Driven Electric Cylinder/Linear Actuator with Piston Rod
Brand: Parker HannifinThe OSPE25-STR trapezoidal lead screw driven electric linear rod type cylinder is suitable for intermittent duty applications and offers self-locking plus excellent slow speed characteristics provides a compact, cost effective solution ideal for applications on transfer handling operations within industrial, manufacturing and assembly environments.
Features- Lead screw driven rod actuator for smooth speed and economic positioning applications
- Self-locking lead screw for safe horizontal and vertical applications
- Piston rod end conforming ISO 15552 (6431 Pneumatics cylinders)
- Double row angular contact ball bearings for medium to high thrust load
- Strip seal offering IP54 protection
- Pre-configured motor and gearhead mounting kits for simplified installation
Specifications
Brand
Corrosion Resistant Option
- No
Drive Type
- Screw
IP Protection Rating
- IP54
Maximum Speed (inch/sec)
- 2.95
Maximum Speed (m/sec)
- 0.075
Maximum Stroke (inch)
- 19.68
Maximum Stroke (mm)
- 500
Maximum Thrust (Lbs)
- 179
Maximum Thrust (N)
- 800
Operating Temperature (°C)
- -20° to +70° C
Operating Temperature (°F)
- -4° to +158° F
Position Repeatability (± Inch)
- 0.02
Position Repeatability (± mm)
- 0.5
Profile Width (mm)
- 41
Rod End Dimension
- ISO 25
Series
- OSP-E
- Factory Automation
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Packaging Machinery
- Printing and Marking Equipment
- Vehicle Assembly Facilities
- Food & Beverage
