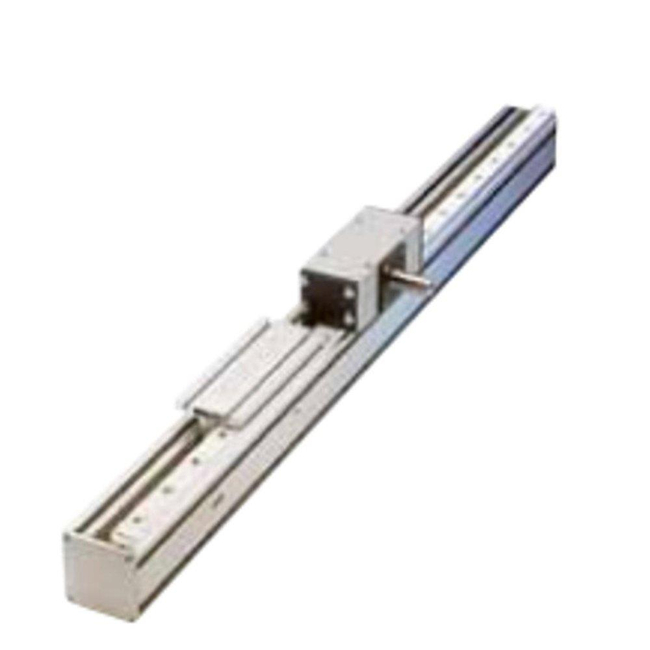

HLEZ150 Rack & Pinion Driven, Roller Wheel, Rodless Linear Actuator

HLEZ150 Rack & Pinion Driven, Roller Wheel, Rodless Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

The HLE-Z offers the same rugged roller bearing design and industrially hardened structure as the HLE-RB, however the incorporation of a rack-and-pinion drive train allows for truly “endless” travel lengths.

This design utilizes Parker's HLE150-RB series as the platform, allowing for significant structural rigidity and high normal loading.

The exceptional dynamic characteristics of this unit make it the ideal fit for high speed linear translation and positioning applications over long distances.

The HLE-Z's rack drive system provides fast, highly repeatable positioning of the carriage.

The unique rack drive design offers all of the advantages of typical rack and pinion elements without the drawbacks.

The driven element is comprised of a short belt element inverted to track into the teeth of the rack.

By utilizing belt technology and providing pre-tension to the belt, drive backlash can be eliminated.

Additionally, the combination of a steel reinforced timing belt and aluminum rack provides for a safe and clean environment which requires no lubrication.

The HLE-Z is ideal for overhead gantry robots, storage retrieval systems and other applications requiring long travels, high performance, and maintenance free operation.
Features
  • Long travels
  • Independent multiple carriages on a single rail
  • Roller wheel bearings for smooth high speed linear motion
  • Truly unlimited travel
  • T-slot mounting along actuator body and carriage

Specifications

Brand

Additional Protection Option

  • None

Bearing Type

  • Roller Wheel - Polyamide

Corrosion Resistant Option

  • No

Drive Type

  • Rack & Pinion

Idler Unit Option

  • N/A

IP Protection Rating

  • IP00

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 393

Maximum Acceleration (m/S2)

  • 10

Maximum Payload FZ (N)

  • 3320

Maximum Speed (inch/sec)

  • 200

Maximum Speed (m/sec)

  • 5

Maximum Stroke (inch)

  • 346

Maximum Stroke (mm)

  • 8800 (Single Profile) / 50000 (Max. by Splicing)

Position Repeatability (± Inch)

  • 0.002

Position Repeatability (± mm)

  • 0.05

Profile Width (mm)

  • 150

Typical Payload FZ (N)

  • 300 - 3320
