RF-1000 Radiator Air Flow Measurement System

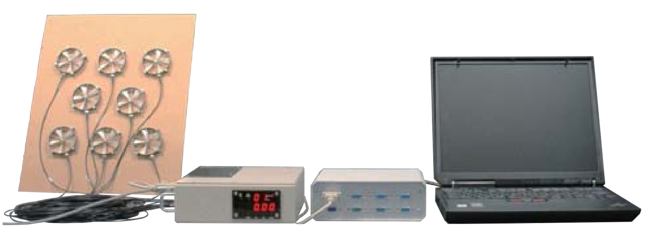

RF-1000 is the measurement system of the air flow going to an engine radiator.

The rotation frequency of vane anemometer (vane wheel sensor) is detected by an optical sensing system, and is converted into an air flow with the converter for radiator anemometers.

The converter is equipped with those functions as the air flow and frequency spectrum designation, the Analog voltage output, and the communication function (with RS232 converter + “Wind1” software). And the air-flow data of a maximum of 64 channels can be collected with a personal computer by connecting two or more air flow converters to a RS232 converter.

The versatile functions are realized by the dedicated communication software “Wind1”. Those are average calculation of air velocity, calculation of flow volume, setup functions of measurement times, measurement interval and data recording. Actual driving test can be conducted if whole system is loaded in vehicle.
