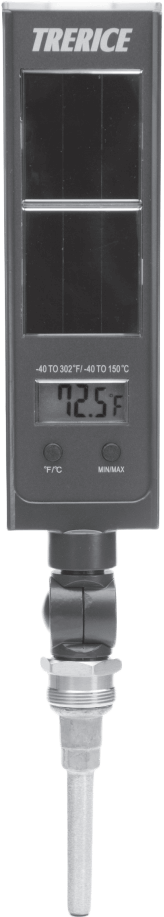

SX9 Solar Therm
Brand: Trerice Gauges & ValvesThe Trerice SX9 “Solar Therm” now comes standard with a NEMA-4X case, making it the perfect choice for outdoor applications and in areas that require “spray-down.”
Our industry first“ Capsule-Tite” sealing technology insures that the electronics stay dry no matter what the application.
The SX9 is the ideal replacement for existing mercury-in-glass thermometers in environmentally conscious applications.
It features a rugged cast aluminum case, easy to read LCD display and an adjustable-angle stem that is fully interchangeable with industrial liquid-in-glass thermometers.
Also available is a bimetal type stem for applications where a digital thermometer is preferred over existing analog bimetals.
The “Solar Therm” requires no external power and needs only 10 lux of illumination(from any light source) to operate.
The unique Min/Max feature provides instant recall of minimum and maximum temperatures over a given period and is easily reset.
Features- Light Powered No Batteries Required
- Large LCD °F/°C Switchable Display
- Cast Aluminum Case NEMA-4X/IP 65
- Min/Max Feature
- Suitable for Outdoor Use
Specifications
Brand
Scale Size
- 7" Adjustable Angle
Case
- Cast Aluminum, Blue Epoxy Finish NEMA-4X/IP65
Stem
- Industrial, Bimetal or Air-Duct
Connection
- Industrial: 1-1/4-18 UNEF-2A Coupling Unit
- Bimetal: 304 Stainless Steel Stem 1/4" Diameter, 1/2" NPT
- Air-Duct: Reversible Mounting Flange with 3 Bolt Holes
Sensor
- Glass Passivated Thermistor
Range
- -40° to 300° F (-40° to 150° C)
Display
- 9/16" LCD Digits Switchable between F/C. Push Button min/max Readings with Reset
Accuracy
- 1 % or 1° F, whichever is greater
Resolution
- ⅒°
Lux Rating
- 10 Lux (one foot Candle)
Ambient Operating Temperature
- -40° to 140° F (-40° to 60° C)
Ambient Temperature Error
- None
Humidity
- Maximum: 95 RH, Non-Condensing
Approximate Shipping Weight
- 1.5 lb (0.68 kg)
