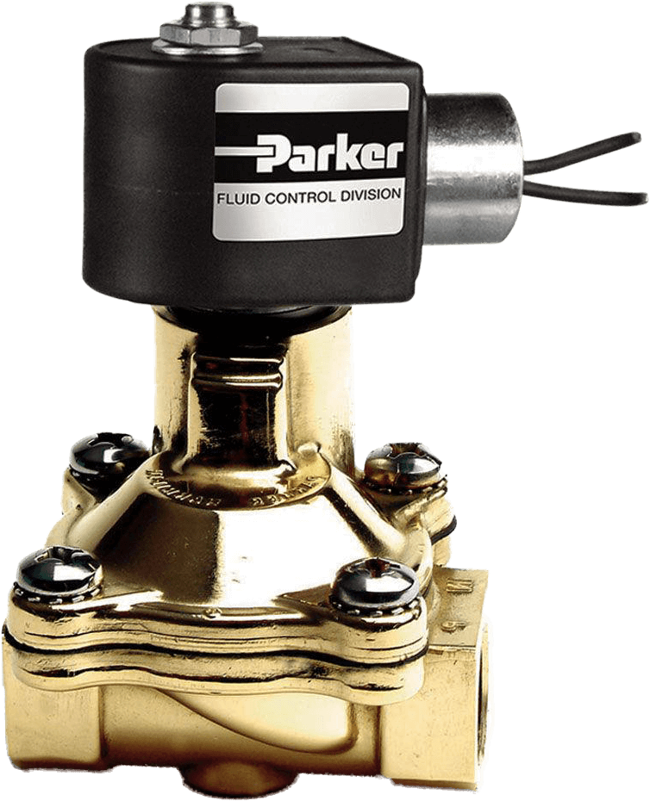

Parker 2-Way Normally Closed, ½" NPT General-Purpose Solenoid Valves
Brand: Parker - Fluid Control DivisionParker 2-Way Normally Closed, ½" NPT Solenoid Valves provide operating pressures up to 300 psi and flow factors up to 4.4 Cᵥ's.
They offer multiple body materials, mounting positions and Class F or H or NEMA 4X, 7 or 9 coils for all flow applications.
Parker's 2-Way Normally Closed ½" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam.
These valves are available in brass and stainless steel construction. Coil options are available in ½" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Features- High Quality Standards of Skinner® and Gold Ring™ Brand
- Modular Design
- Long Life
- Tight Shutoff
1 - 12 of 232 Part Numbers
08F22C2140A3F4C75
08F22C2140A3F4C80
08F22C2140A3FPH75
08F22C2140A3FPH80
08F22C2140AAF4C01
08F22C2140AAF4C05
08F22C2140AAF4C15
08F22C2140AAFPH01
08F22C2140AAFPH05
08F22C2140AAFPH15
08F22C2140ADF4C01
08F22C2140ADF4C05
1 - 12 of 232 Part Numbers
Specifications
Actuation
- Direct-Acting, Direct Lift, Pilot, Center Diaphragm, Piloted, Diaphragm, Pivoted Edge or Hung Diaphragm
Body Material
- Stainless Steel or Brass
Coil Protection Mode
- NEMA 4X, 7 or 9
Coil Type
- ½” NPT Conduit, 18” Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H & ¼ ” Tab Terminal, Class F
Flow Factor 1
- 3.6 to 4.4 Cᵥ
Flow Factor 2 (Cv)
- N/A
Function
- Normally Closed
Maximum Fluid Temperature
- 353°F
Maximum Pressure Differential
- 35 to 300 psi (AC) or 10 to 300 psi (DC)
Media
- General-purpose for Air, Liquids & Gases & General-purpose for Steam
Minimum Fluid Temperature
- 0°F
Minimum Pressure Differential
- 0 psi
Number of Ports
- 2
Orifice 1 Size
- 7/16" to ⅝”
Orifice 2 Size (inch)
- N/A
Port Size
- ½”
Port Type
- NPT
Power (Watts)
- 6 to 22 Watts (AC) or 10 to 22 Watts (DC)
Seal Material
- NBR, FKM, PTFE, EPDM
Series
- 7000 & Gold Ring Series
Valve Type
- 2-Way
Voltage
- Up to 240 / 60 V (AC) or 24 (Vdc)
- Instrumentation Equipment
- Analyzers and Diagnostic Equipment
- Medical and Dental Equipment
- Portable Welding Equipment
- Spraying Equipment
- Lubrication Equipment
- Beverage Dispensing & Vending machines
- Oil Burners
- Humidification and Misting Equipment
- Mobile Fuel Shut Off
- Textile and Dry Cleaning Equipment
- Commercial Dishwashers
- Commercial Laundry and Dryers
- Air Horns
- Pneumatic Fan Clutch
- Irrigation Equipment
- Markets:
- Commercial Equipment
- Food & Beverage
- Industrial Automation
- Oil & Gas
- Process Control
- Transportation
