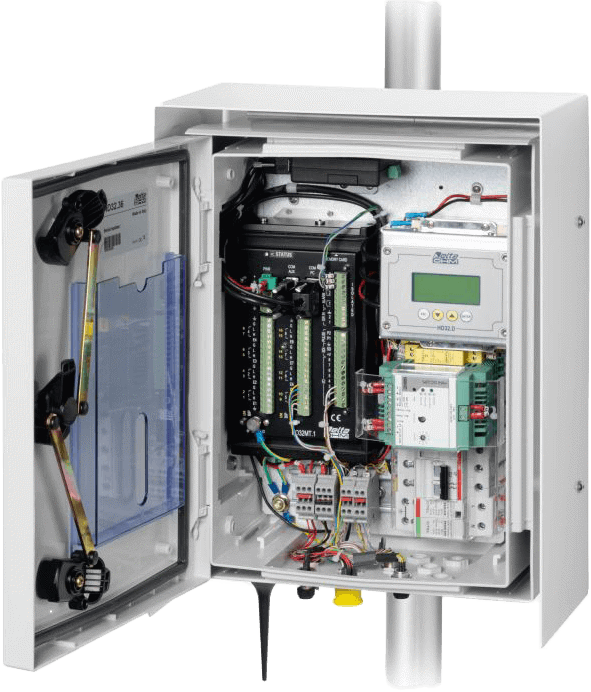

HD32.36 – Outdoor Housing with Acquisition System

Brand: Delta OHM S.R.L.

HD32MT.1 data logger integrated in a fiberglass-reinforced hot-pressed polyester outdoor housing.

Screen to protect the housing from solar radiation, powder-coated anodized aluminum. White.

Key lock. Dimensions 415 x 310 x 170 mm. IP66 protection degree.

Supplied with accessories for attachment to the stainless steel pole diameter 36…52 mm.

Provided for 100…240 Vac mains power supply or for power supply from solar panel (version HD32.36FP). Wired and tested.

Optionally, LCD viewer simple (HD32.3D) or with GPS module for automatic time synchronization of the data logger (HD32.D.GPS)

1 - 2 of 2 Part Numbers
HD32.36
HD32.36
Provided For 100 ÷ 240Vac Mains Power Supply
Outdoor-box for complete weather stations acquisition system.
Material: Polyester reinforced with hot-moulding Fiberglass.
Screen to protect the box from solar radiations.
Powder-coated, anodized aluminium. White colour. Key lock.
Dimensions: 415 x 310 x 170 mm.
Protection degree: IP66.
Equipped with the accessories to mounting on a mast diameter 36 ÷ 52 mm.
Provided for 100 ÷ 240Vac mains power supply, includes: HD32MT.1 datalogger, power supply unit AC / DC with battery charger, rechargeable 12V battery, surge protection, breakers, power distribution terminals and connectors for connection to external sensors.
HD32.36FP
HD32.36FP
For Power Supply By Solar Panel
Outdoor-box for complete weather stations acquisition system.
Material: Polyester reinforced with hot-moulding Fiberglass.
Screen to protect the box from solar radiations. Powder-coated, anodized aluminium. White colour. Key lock.
Dimensions: 415 x 310 x 170 mm.
Protection degree: IP66.
Equipped with the accessories to mounting on a mast diameter 36 ÷ 52 mm.
For power supply by solar panel, includes: HD32MT.1 logger, solar panel charge controller, and power distribution terminal block connectors for connection to external sensors.
1 - 2 of 2 Part Numbers
