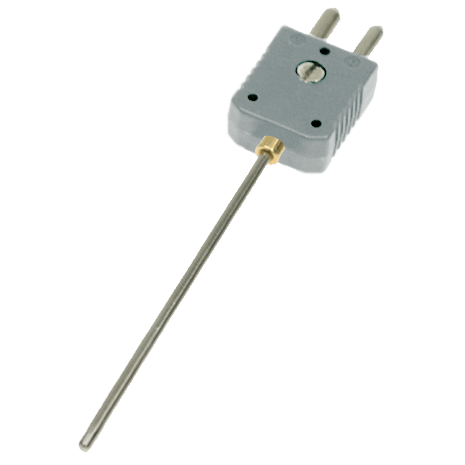

Type 1100 Thermocouple with Plug
Brand: SOR IncThe SOR Type 1100 Thermocouple with plug has a heavy duty 2-prong style connector for easy installation to extension jacks, hand held meters or other instrumentation.
Features- Additional fitting and adapter options available
- A variety of termination options available for any application
Specifications
Brand
Adapter
- Bayonet Adapter (Adjustable) 1/8” (3.2 mm) O.D.
Cable Type
- Mineral Insulated (MI) Cable
Connectors
- L' Bracket Connector
Diameter
- Outer Diameter (OD): 1/25” to 3/8” (1.0 to 9.5 mm)
Junction
- Dual Exposed
- Dual Grounded
- Dual Ungrounded
- Exposed
- Grounded
- Ungrounded
Materials of Construction
- Adjacent Compression Fitting: Brass
- Adjacent Compression Fitting: Stainless Steel
- Ferrule Material: Teflon
- Sheath Material: 304 Stainless Steel
- Sheath Material: 310 Stainless Steel
- Sheath Material: 316 Stainless Steel
- Sheath Material: Alloy 600
NPT Connection
- 1/2” NPT
- 1/4” NPT
- 1/8” NPT
Process Fitting Details
- Adjacent Compression Fitting
Seal Type
- Epoxy Seal
Sensor, Probe Type
- E Thermocouple - Chromel-Constantan
- J Thermocouple (Iron Constantan)
- K Thermocouple (Chromel Alumel)
- N Thermocouple (Nicrosil Nisil)
- R Thermocouple (Platinum 13 % Rhodium Pure Platinum)
- S Thermocouple (Platinum 10 % Rhodium Pure Platinum)
- T Thermocouple (Copper Constantan)
Termination
- Bare Ended Leadwire - 1” (2.54 cm)
- Compensated Spade Lugs
- Large, Mini, Hi-Temp, Dual & Three-Pin Jack
- Large, Mini, Hi-Temp, Dual & Three-Pin Plug
