MIST M23 RTD Temperature Transmitter

Brand: Intempco Controls, Inc

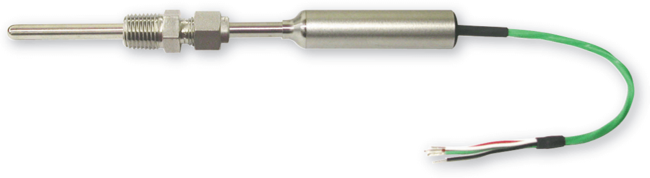

MIST M23 RTD Pt 100 temperature sensor a complete RTD temperature sensor probe, signal conditioner and 4-20 mA output.

Intempco MIST patented RTD (Pt100) sensor probes contain miniature programmable temperature transmitters in the TJ transition junction or in the 2-Wire 4-20 mA dc output lead wire.

Mist Microprocessor Integrated Sensor Transmitters can be fitted with M12 quick disconnect automation connectors, 3-A sanitary and NPT threads. Process connections can be fixed welded or adjustable compression.
Features
  • Small compact size (connection head not required)
  • Built-in 4-20 mA, 2-Wire temperature transmitter
  • Hermetically sealed transmitter
  • Factory calibrated 4-20 mA output
  • Output: 4-20 mA, 0-5, 1-5, 0-10 Vdc
  • Operating temperature range -50° to 200° C (-58° to 392° F) fixed or field programmable
  • Accuracy ±0.10° C + 0.10% of calibrated span with 2 point calibration
  • MIST PKIT programming kit to re-program and re-calibrate
  • 316 stainless steel probe and process fittings
  • Cable PVC, Teflon, Teflon with Stainless Steel Armor
  • M12 connection or leadwire length as required
  • Probe lengths, diameters and process connection options as required
  • Requires 2-wire loop power, 10-32 Vdc

1 - 1 of 1 Part Numbers
MIST M23
MIST M23
  • Temperature Range - 0° to 50° C (32° to 122° F)
  • Output - 4-20 mA Loop - Upscale Burnout
  • Probe Diameter - 1/8"
  • Probe Materials - 316/316L Stainless Steel
  • Immersion Length - 1 Custom Immersion Length: Inches
  • Extension Cold Leg Length - Extension Cold Leg Length in Inches
  • Instrument Connections - None - Smooth Shank
  • Fitting Type - 316 Stainless Steel, 1/8" NPT, Fixed Immersion Fitting
  • Extension Cable - PVC Insulation, Stranded Conductor 90° C (195° F) Maximum
  • Extension Cable Length - 6 Custom Extension Cable Length in Inches
1 - 1 of 1 Part Numbers

Specifications

Accuracy

  • ± (0.10° C (0.18° F) + 0.10 % of Calibrated Span) with Two-Point Calibration

Cable Material

  • PVC
  • Teflon Insulation 200° C (392° F), with Stainless Steel Armor & Overbraid

Electrical Connectors

  • 22 AWG, 12” Long Extension Wires & Less are Single Stranded Leads
  • M12 Connector

Environmental Protection

  • IP67 Hermetically Sealed
  • NEMA 6P Hermetically Sealed

Instrument Connection

  • 1/2” NPS Male
  • 1/2” NPT Male

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/4” NPT Male
  • 3/8” NPT Male

Operating Temperature

  • -50° to 200° C (-58° to 392° F)

Output

  • 0-10 Vdc 3-Wire, Linear to Temperature
  • 0-5 Vdc 3-Wire, Linear to Temperature
  • 1-5 Vdc 3-Wire, Linear to Temperature
  • 4-20 mA, 2-Wire Loop Powered, Linear to Temperature

Power Supply

  • 10-32 Vdc, 2-Wire Loop Powered

Process Connection Material

  • 316 Stainless Steel

Process Fitting Details

  • Fixed Immersion Fitting

Relief

  • Strain Relief

RTD Type

  • Pt100

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire

Sensor, Probe Diameter

  • 1/8 to 1/2” (3.17 to 12.7 mm)

Sensor, Probe Material

  • 316 Stainless Steel
  • 316L Stainless Steel

Sensor, Probe Type

  • RTD

Temperature Range

  • -200° to 600° C (-328° to 1,112° F)

  • Fluid Temperature
  • Air Temperature
  • Process Heat Exchanger
  • Sanitary 3A
  • Programmable Transmitter
