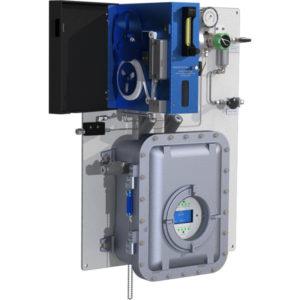

Model 330S H2S & Total Sulfur Analyzer
Brand: Envent Engineering LtdThe Model 330S H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S.
An optional Total Sulfur measurement can be added to the analyzer. Certified for Class I, Div 1, Groups C and D (Group B available).
The Envent 330S/331S H2S Analyzer is a uniquely rugged and simple design that utilizes lead acetate based detection which provides a linear and interference-free output of H2S concentration.
This analyzer can measure a wide range of hydrogen sulfide concentrations from parts per billion (ppb) concentrations to parts per million (ppm) concentrations.
With the addition of a dilution sample system, it can read high concentrations in percentage up to 100%. There are other options available such as the sample system for H2S analysis in liquids or the addition of a hydrogen reaction furnace for total sulfur measurements.
Features- Fast Response times using Rapid Response Algorithm (RRA) ~20 seconds to alarm
- No interference from other components in the sample
- Low power consumption <3 Watts
- Extended tape life of 60-90 days
- Measures up to 5 times the calibrated range
- Quick delivery – as quick as 1 to 2 days for standard systems
- Full field service & training available
Specifications
Brand
Power
- 12-24 Vdc @ less than 3 watts or 100-240 Vac, 50/60 Hz
Electrical Classification
- Certified for Class I, Div. 1 Groups B, C, & D
Ambient Temperature
- 0° to 50° C (32° to 122° F) Standard. Contact for other Requirements.
Output Ranges
- Standard Ranges: 0-5 ppm to 0-100 ppm, higher Ranges without dilution available upon Request.
- A dilution system is recommended with Ranges over 400 ppm.
- Custom Ranges: 0-50 ppb to 0-100 %
Response Time
- 20-sec Alarm
Accuracy
- ± 2.5 % Full Scale for Ranges 50 ppm
- ± 1 % Full Scale for Ranges 1 to 50 ppm
Repeatability
- ± 1.5 % Full Scale for Ranges 0.5 to 1 ppm
- ± 1.25 % Full Scale for Ranges > 50 ppm
- ± 1 % Full Scale for Ranges 1 to 50 ppm
- ± 2.5 % Full Scale for Ranges < 0.5 ppm
Inputs
- Four Digital Inputs individually configurable.
Outputs
- Four Solid State solenoid drivers (auto cal, total sulfur, stream switching, valve actuator).
- Four 5 amp SPDT Alarm Relays (High Reading, High High Reading, Low Tape, Low Pressure, Low Temperature, Fault).
- (Modbus) Serial RS-232 & RS-485 (Ethernet available).
- Dual isolated 4-20 mA (Loop-Powered).
Displays
- 128 x 64 Graphic Display, Menu is scrolled by internal button or external magnet
Dimensions
- The Model 330S is Mounted on a 24" W x 36" H x 1/4" (60.96 W x 91.44 H x 0.635 L cm) thick anodized Panel.
- 17.4" W x 32.7" H x 13.7" D (44.2 W x 83.1 H x 34.8 D cm)
Configuration Software
- Windows Software for customer configuration, archive retrieval, and Modbus mapping.
SDS Dual Stream
- The 330SDS Analyzer measures two streams at the same time.
Total Sulfur
- Total Sulfur furnace converts all sulfur compounds to H₂S which Allows the analyzer to measure Total Sulfur.
CO2
- Dual-beam IR bench. CO₂ concentration is displayed on the second line of display and can be configured as a 4-20 mA analog output. CO₂ Ranges from 0-20 % to 0-100 %
Auto Calibration
- Allows user to initiate a calibration based on time or external switch.
Stream Switching
- Allows switching of four (4) Input streams or from H₂S to Total Sulfur measurement.
Dilution
- Allows measurements up to 30 % H₂S using permeable membrane dilution.
Certifications & Approvals
- cETLus
- COR
Liquid Sampling
- Liquid sample system to measure H₂S in Hydrocarbon Liquids or water.
Custom Systems
- Envent can Design custom integrated systems to meet application Requirements.
- Sales Gas
- Plant Inlet
- Pipeline Monitoring & Blending
- H2S Scavenger Systems
- Wellhead Monitoring
- Acid Gas
- Fuel Gas Monitoring
- Bio Gas
- Natural Gas
- Petrochemical Streams
- Condensate
- LPG
