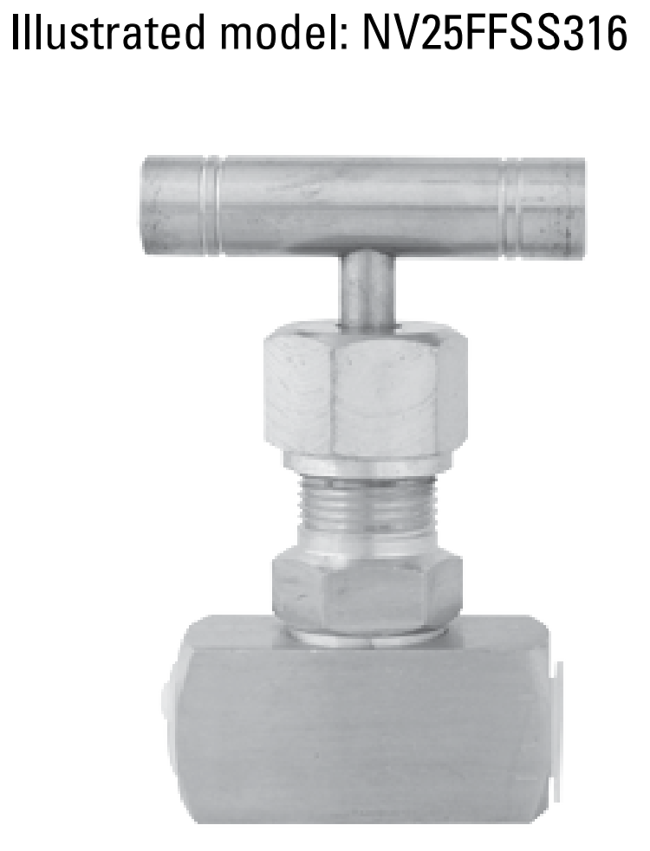

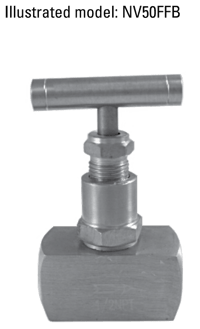

Model NVB/NVSS316 One Piece Needle Valve
Brand: Pitanco Precision
Conical stem which penetrates more or less in an orifice and serves to adjust the flow of a non-corrosive fluid.
It is always recommended to install a mini ball valve or a needle valve on a line before each pressure gauge installation.
Specifications
Brand
Housing
- One Piece Brass - Model NVB
- One Piece 316 Stainless Steel - Model NVSS316
Packing
- Stainless Steel - Model NVB
- Teflon - Model NVSS316
Connection
- 1/4” NPTF x 1/4” NPTF - Only with NVSS316
- 1/2” NPTF x 1/2” NPTF
- 3/4” NPTF x 3/4” NPTF - Only with NVSS316
- 1” NPTF x 1” NPTF - Only with NVSS316
Stem
- Brass - Model NVB
- 316 Stainless Steel - Model NVSS316
Operating Pressure
- 0 to 2,000 psi / 13,790 kPa - Model NVB
- 0 to 6,000 psi / 41,369 kPa - Model - NVSS316
Operating Temperature
- < 300° F / 150° C - Model NVB
- < 500° F / 250° C - Model NVSS316
