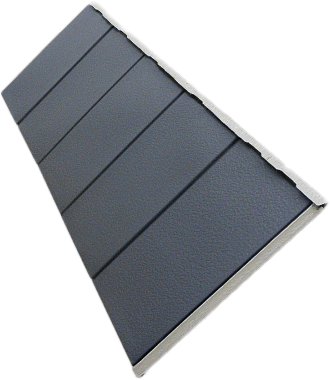

StoneCrest® Tile Steel Shingles
Brand: Tamko Building Products LLCSmooth texture. Refined appearance.
MetalWorks StoneCrest Tile steel shingles create the look of smooth, uniform tile for a contemporary feel.
Features- G-90 steel construction.
- Kynar 500®/Hylar 5000® finish, Fluropon® Coil Coating System containing 70% polyvinylidene Fluoride (PVDF) proprietary resins.
- Can be used for reroofing applications—install over up to two layers of asphalt shingles. Check your local building code. Building code restrictions may apply.
- Can be applied on decks greater than 3 inches per foot.
- Available in a variety of colors.
- Four-way locking system
- 100% recyclable
- 50-year Limited Warranty and Arbitration Agreement, 25-year Full Start Period
Specifications
UL Listed for Class A Fire Rating
- UL 790/ASTM E108, Class A
UL Classified for Wind Resistance
- ASTM D3161, Class F
UL Classified in Accordance with
- UL 2218 Class 4 Impact Resistance
UL Reports
- UL ER18590-01
Florida Building Code Approved
- FL3901
Canadian Construction Materials Centre Report
- CCMC 13011-R
Shingle Size
- 12-5/8” x 39-3/4”
Exposure
- 12”
Coverage per Box
- 49.2 sq.ft.
Shingles per Box
- 15
Shingle Material
- 28 gauge nominal 0.0162” (0.066802 cm) thickness, including G-90 galvanization and paint coatings
Exterior Finish
- Fluropon coatings with primer, 1 mil dry film thickness
Interior Finish
- Wash coat with primer, 0.6 mil dry film thickness.
Clip Size
- 1-1/4” wide x 2-1/8” long x 1/5” deep
Clip Material
- 0.015” thick, G-90 galvanized steel
