Hygrometry Probes For Class 310 Sensors

Brand: Sauermann Group

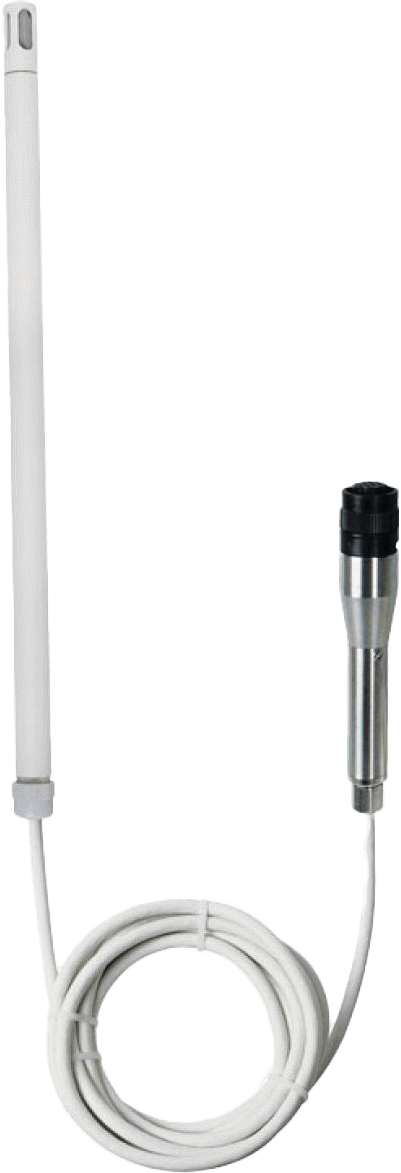

Kimo's hygrometry probe is an interchangeable probe that measures temperature and humidity.

It has a measuring range of 5 to 95% RH and from -40 to +180°C for the stainless steel probes and 5 to 95% RH and -20 to +80°C for the polycarbonate probes.

1 - 5 of 5 Part Numbers
SHDI-150
SHDI-150
Hygrometry Probes For Class 310 Sensors
Interchangeable stainless steel hygrometry / temperature probe, with stainless steel filter, for Class 310.
Remote probe length 150mm, diameter 13mm.
Measuring range: 0 to 100 %RH and -40 to 180°C, white silicone tube length 2m, with 14/ turn airtight connector.
Supplied with adjustment certificate.
SHDI-300
SHDI-300
Hygrometry Probes For Class 310 Sensors
Interchangeable stainless steel hygrometry / temperature probe, with stainless steel filter, for Class 310.
Remote probe length 300mm, diameter 13mm.
Measuring range: 0 to 100 %RH and -40 to 180°C, white silicone tube length 2m, with 1/4 turn airtight connector.
Supplied with adjustment certificate.
SHDP-150
SHDP-150
Hygrometry Probes For Class 310 Sensors
Interchangeable Polycarbonate hygrometry / temperature probe, with stainless steel filter, for Class 310.
Remote probe length 150mm, diameter 13mm.
Measuring range: 0 to 100 %RH and -20 to 80°C, white silicone tube length 2m, with 1/4 turn airtight connector.
Supplied with adjustment certificate.
SHDP-300
SHDP-300
Hygrometry Probes For Class 310 Sensors
Interchangeable Polycarbonate hygrometry / temperature probe, with stainless steel filter, for Class 310.
Remote probe length 300mm, diameter 13mm.
Measuring range: 0 to 100 %RH and -20 to 80°C, white silicone tube length 2m, with 1/4 turn airtight connector.
Supplied with adjustment certificate.
SHSI
SHSI
Hygrometry Probes For Class 310 Sensors
Interchangeable hygrometry and ambient temperature stainless steel probe, with stainless steel filter, for C310 and CA310 transmitters.
Standard mounting probe length 120mm with 1/4 turn airtight connector.
Measuring range from 5 to 95 %RH and -20°C +80° C. Supplied with adjustment certificate. Coming in option: protection tips and filters.
1 - 5 of 5 Part Numbers

Specifications

Units of Measure

  • °C, % RH, °Ctd, g/m³

SHSI Measuring Range

  • -20.00° C to 80.00° C
  • -50.00° Ctd to 100.00° Ctd
  • 0.00 % RH to 100.00 % RH
  • 0.00 g/m³ to 600.00 g/m³

SHDI Measuring Range

  • -40.00° C to 180.00° C
  • -50.00° Ctd to 100.00° Ctd
  • 0.00 % RH to 1000.00 % RH
  • 0.00 g/m³ to 600.00 g/m³

SHDP Measuring Range

  • -20.00° C to 80.00° C
  • -50.00° Ctd to 100.00° Ctd
  • 0.00 % RH to 100.00 % RH
  • 0.00 g/m³ to 600.00 g/m³
