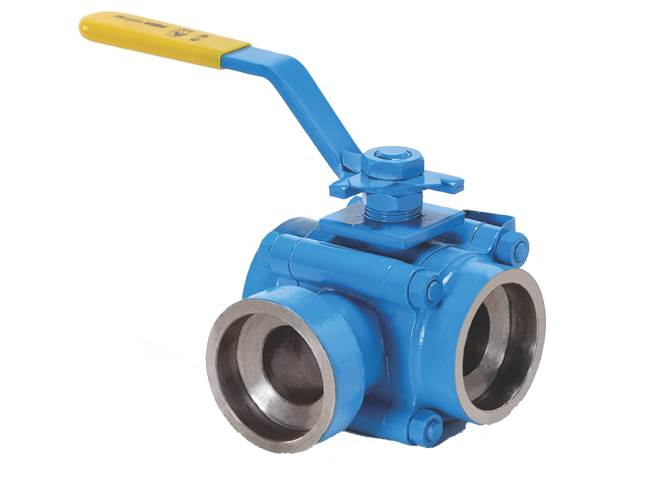

Class 150/300/600/800 3 Way Ball Valve
Brand: Belgaum Aqua Valves Pvt. Ltd.
Multiport 3-way ball valves offer superior performance and reliability required to optimize manual and automation process performance. This versatile, high performance multi-port ball valves offer solutions to mixing and diverting, with various available flow patterns and end configurations. It can be maintained in line, leaving the end pieces intact.
The direct mounting design makes automation easier. These can be offered in flanged, socket weld, threaded and butt weld connections. The special features included are: Superior smooth stem surface that reduces seal friction and operating torque.
Blow out proof stem for maximum safety. Precisely machined, mirror polished solid ball for tight shut off with less operating torque.
Features- Maintenance free live loaded double sealing stem packing ensures high cycle’s life and positive sealing.
- Blow-out Proof Stem
- ISO5211 Mounting Pad Allows for mounting of actuator
Specifications
Valve Type
- 3-Way Ball Valve, 2 Seat
Body Type
- 2pc Standard / 3pc Optional
Seat Type
- Soft / Metal
End Connection
- Flanged / Screwed/ Socket weld end
Size Range
- 15 NB to 150 NB for reduced port / full port
Pressure Rating
- Class 150, 300 & 800
Seat Leakage
- Class VI- soft seat
- Class V-Metal seat
Conformity To Codes & Standards
- General design: BS EN ISO - 17292
- Valve dimensions: ASME B 16.10/B 16.5
- Valve inspection & testing :BS-6755 #300
