Vibranivo® - VN 1030 Vibration Level Switch
Brand: UWT GmbHApplication Area

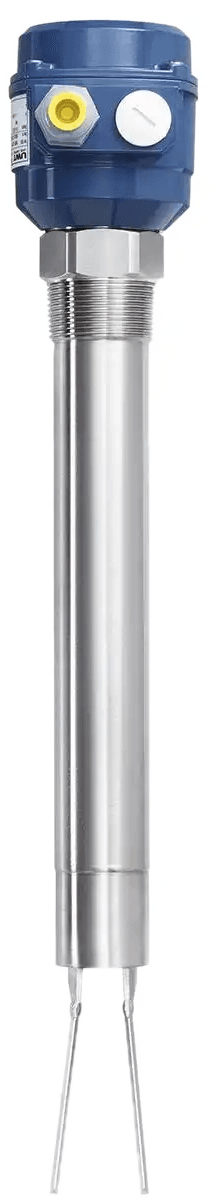

The vibrating fork VibranivoĀ® VN 1030 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids.
The measuring probe can be flexibly adjusted up to a length of 4000 mm and puts the switching point where the application needs it.
The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygienic requirements.
Features- Maintenance-free sensor for use in many bulk materials
- Probe extension adjustable up to 4000 mm length
- Plug and play level limit switch without calibration
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
- Interface Level Measurement
Version
- Pipe Extension
- Interface Detection
- Remote Version
Medium
- Solids
Mounting Position
- Top
- On a Socket
- Horizontal
Ambient Temperature
- -40Ā°C ā¦ +60Ā°C (-40 ā¦ +140Ā°F)
Process Temperature
- -40Ā°C ā¦ +150Ā°C (-40Ā°F ā¦ +302Ā°F)
Process Pressure
- -1 bar ā¦ +16 bar (-14.5 psi ā¦ +232 psi)
Minimum Sensitivity
- > 50 g/l (> 3 lbs/ftĀ³)
Housing Type
- Standard
Housing Material
- Aluminum
Housing Protection Rating
- IP66
Threaded Connection
- ā„ R 1Ā½"
- ā„ NPT 1Ā½"
Flange Connection
- ā„ 2" / ā„ DN100
Hygienic Fittings
- Triclamp 2"
Wetted Materials
- Stainless Steel 1.4301 (304)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Tube: 300 Nm
- Oscillating Rods: 0.6 kN
Minimum Immersion Length
- 300 mm (11.8")
Maximum Immersion Length
- 4 m (13.15')
Power Supply
- 19...230 VAC
- 12.5...36 VDC
- Universal Voltage (19...55 VDC / 19...230 VAC)
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- 8/16 mA
- 4-20 mA
Approvals
- CE, ATEX, IEC-Ex, INMETRO, TR-CU
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Sliding Sleeve for Variable Immersion Length
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
