Vibranivo® - VN 6050 Vibration Level Switch
Brand: UWT GmbH
Application Area
The VibranivoĀ® VN 6050 vibrating fork is used in storage and process vessels as a full detector in many dry and free flowing bulk solids.
The tuning fork sensors can be flexibly configured up to a length of 20000 mm and bring the switching point where the application needs it.
Due to its high sensitivity, the point level probe is particularly suitable for very light bulk solids.
The VN 6050 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.
Features- Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
- Probe extension adjustable up to a length of 20000 mm
- Flameproof version available for use within potentially explosive atmospheres (gas)
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
Version

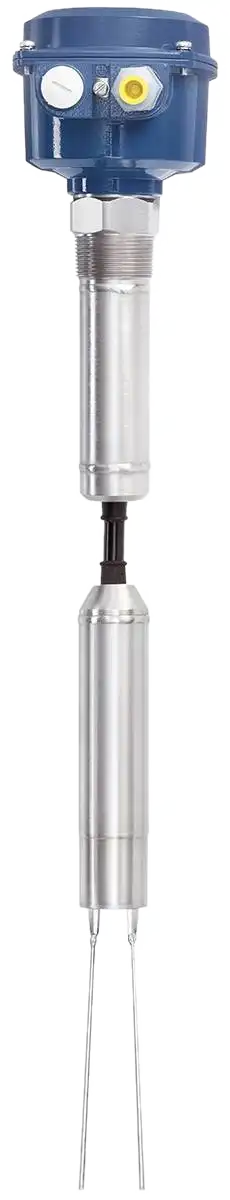

- Cable Extension
- Enhanced Sensitivity

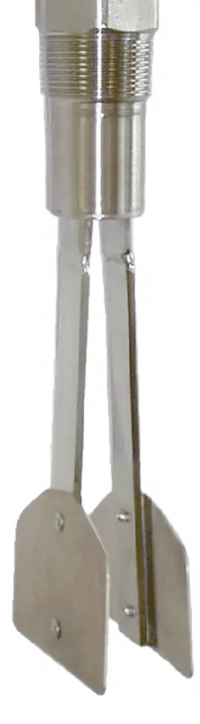

- Vibrasil 70
- Vibrasil 90
Medium
- Solids
Mounting Position
- Top
- On a Socket
Ambient Temperature
- -25Ā° C to +60Ā° C (-13Ā° F to +140Ā° F)
Process Temperature
- -40Ā° C to +150Ā° C (-40Ā° F to +302Ā° F)
Process Pressure
- -1 bar ā¦ +6 bar (-14.5 psi ā¦ +87 psi)
Minimum Sensitivity
- > 20 g/l (> 1.2 lb/ftĀ³)
- Option Enhanced Sensitivity: > 5 g/l (> 0.3 lb/ftĀ³)
- Option Vibrasil: > 5 g/l (> 0.3 lb/ftĀ³)
Housing Type
- Standard
- Flameproof
- Increased Safety
Housing Material
- Aluminum
Housing Protection Rating
- IP66, NEMA Type 4X
Threaded Connection
- ā„ R 1-1/2"
- ā„ NPT 1-1/2"
Flange Connection
- ā„ 2" / ā„ DN 100
Wetted Materials
- Stainless Steel 1.4305 (303)
- PUR
- Stainless Steel 1.4541 (321)
Mechanical Load
- 2 kN
Minimum Immersion Length
- 750 mm (29.6")
Maximum Immersion Length
- 20 m (65.74 ft)
Power Supply
- 19-230 Vac
- 12.5 - 36 Vdc
- Universal Voltage: 19-55 Vdc / 19-230 Vac
- NAMUR
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- NAMUR
- 8/16 mA
- 4-20 mA
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, INMETRO, FM, CSA
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
- Explosionproof/ Flameproof (Ex d)
- Increased Safety (Ex de)
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
