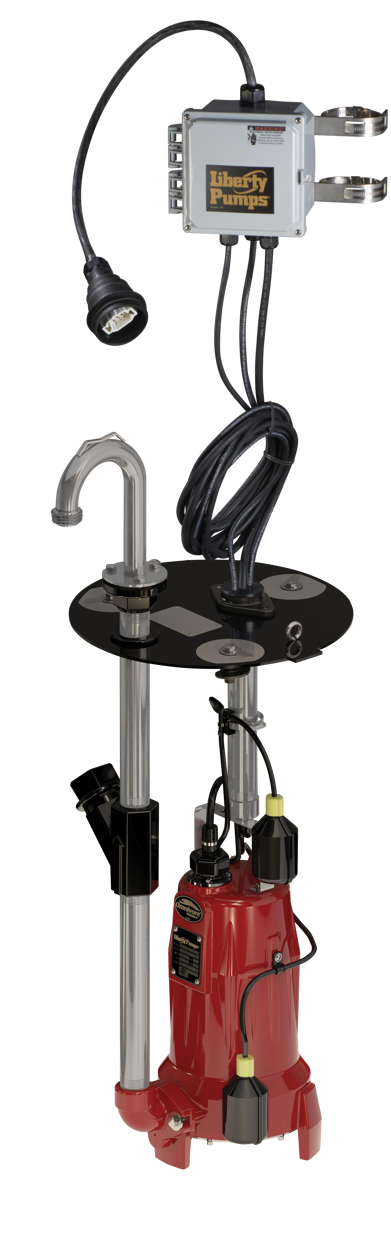

LSG202-RE / LSG202-REX Retrofit Grinder System
Brand: Liberty PumpsA completely assembled Grinder replacement package for E/One® GP200 and GP2000 systems.
Features- Liberty Pumps 2 hp Omnivore® Grinder Pump - available in single stage or two stage
- Fully assembled and ready to drop-in-place
- NEMA 4X junction box contains motor contactor and terminal strip
- Includes floats, piping, and replacement cover
- Sealed 6 pin, quick-connector with 10' cable lead plugs into existing E/One connector
- Alarm float works as a redundant "on" float. Will sound alarm and activate pump in the event of a main switch failure
- Stainless steel piping and discharge elbow
*E/One® is a registered trademark of Environment One Corporation and is not affiliated with Liberty Pumps
Specifications
Brand
Discharge Size
- 1-1/4" FNPT
Power
- 2 hp, 208-230 V, 15 A
Material of Construction
- Piping & Discharge Elbow: Stainless Steel
- Check Valve: Heavy-Duty Cast Iron, Brass
Environmental Protection
- NEMA 4X (JUnction Box)
Power Cord
- Quick-connect, 25'
Certifications & Approvals
- cCSAus
- SSPMA
