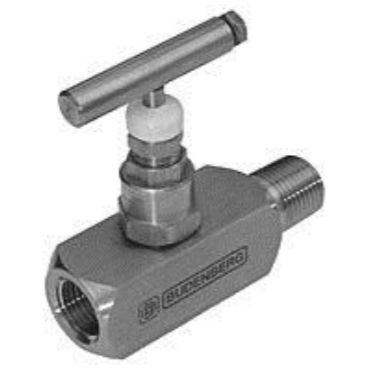

Budenberg Needle Valve, 6N and 10N

6N & 10N Needle Valve

Brand: Budenberg
Add Product to My Catalog

The Model 6N Needle Valves have been designed to give higher strength and integrity to instrument needle valves.

Budenberg have incorporated a dynamic multi-ring gland system in the needle valve, which when combined with the anti blow-out back seating stem, guarantees resistance to all operating processes and pressures.

Low operating torques and high cycle life feature strongly in this unique Budenberg design, giving a "Low Cost of Ownership".
Features
  • Self centring, non rotating stem point
  • Vibration proof handle with positive location and excess torque break feature
  • Fire safe design to BS 6755 Pt 2
  • Anti static, anti blow-out stem
  • Multi-stage 'dynamic' stem packing
  • True 'metal to metal' Body / Bonnet joint
  • Mechanically locked Valve Bonnet to prevent accidental removal
  • Max cold working pressure of 6,000 psi (6N) and 10,000 psi (10N)
  • All options available, full range of materials, thread types and sizes
  • Your Company name and model type etched on Valve body Vented models available
Benefits
  • 100% gas tight seal under all conditions
  • Over designed high strength adaptor threads combine with 'soft' parent metal bottom seal to give closure thread protection and ensures environmental safety
  • Gland and stem leakage is a thing of the past due to the dynamic multi-ring gland system, combined with the anti blow-out back seating system
  • Swaged self centering non-rotating stem tip in one material grade harder than the parent body material. This ensures a positive seat closure under all conditions

View_Details

Specifications

Brand

Body Material

  • 316 Stainless Steel

NACE & NIST

  • NACE

NPT Connection

  • 1" NPT Female
  • 1" NPT Male
  • 1/2" NPT Female
  • 1/2" NPT Male
  • 1/4" NPT Female
  • 1/4" NPT Male
  • 3/4" NPT Female
  • 3/4" NPT Male
  • 3/8" NPT Female
  • 3/8" NPT Male

Stem Packing Material

  • Graphite
  • RPTFE/PTFE

Bore Size

  • 6 mm Standard
  • 8 mm

Working Pressure

  • Max 6,000 psi or 10,000 psi

Documentation

Data Sheets
