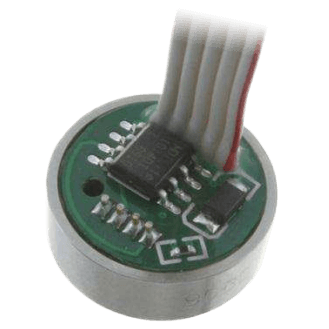

AST Media Isolated Digital Output Pressure Sensor, 85BSD

85BSD Media Isolated Digital Output Pressure

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The 85BSD is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.

This 14-bit digital output pressure sensor supports I²C and SPI interface protocols in either a 3.3 or 5.0 Vdc supply voltage, and is designed to be weldable or threaded with process fittings.

The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. The 85BSD is designed for high performance, low pressure applications.

A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10 to 90% or 5 to 95%. For a similar sensor with O-ring mounting, refer to the 86BSD digital output pressure sensor.
Features
  • Weldable or threaded process fittings
  • ±0.25% Accuracy
  • ±1.0 Total Error Band
  • Cable/connector option
  • Low power option
  • I²C or SPI Interface protocols

View_Details

Specifications

Brand

Accuracy

  • ± 0.25 %
  • ± 1.5° C (3° F) - Temperature Accuracy

Ambient Temperature Range

  • 25° C (77° F)

Applications

  • Corrosive Fluids & Gas Measurement Systems
  • Level Controls
  • Manifold & barometric Pressure Measurement
  • Sealed Systems
  • Submersible Depth Monitoring
  • Tank Level Measurement

Approvals & Certifications

  • RoHS

Calibration

  • ASIC Calibrated

Compensated Temperature

  • -20° to 85° C (-4° to 185° F)

Enclosure, Body Material

  • 316 Stainless Steel
  • 316L Stainless Steel

Insulation Resistance

  • 50 MΩ at 50 Vdc

Interface Connection

  • I²C
  • I²C (ADDR, 0x36H)
  • I²C (ADDR, 0x46H)
  • SPI

Load Impedance

  • 10 KilioOhms - Load Resistance

Media

  • Liquids & Gases

Operating Temperature - Sensor

  • -40° to 125° C (-40° to 257° F)

Output

  • 333 to 666 Count Hex - Zero Pressure Output
  • 399A Count Hex - Full Scale Pressure Output (10 to 90 %)
  • 3CCCB Count Hex - Full Scale Pressure Output (5 to 95 %)

Power Requirement

  • 3 mA - Supply Current

Pressure Range

  • psi: 0 to 300 (kPa: 0 to 2,068, bar: 0 to 20.68)

Pressure Type

  • Absolute
  • Gage

Resolution

  • 0.008 % of Span - Pressure Resolution
  • 0.1° C - Temperature Resolution

Stability

  • ± 0.5 % of Span Per Year - Long Term Stability (offset & Span)

Storage Temperature

  • -40° to 125° C (-40° to 257° F)

Supply Voltage

  • 2.7-5.5 V - Input Voltage Range
  • 3.3 Vdc

Documentation

Data Sheets
