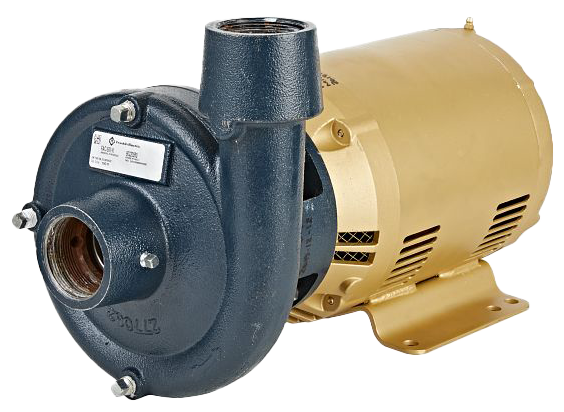

FAC Series Close-Coupled Centrifugal Pump
Brand: Franklin Electric Co, Inc.The versatile, general purpose FAC close-coupled centrifugal pump is constructed from durable cast iron and includes a carbon/ceramic mechanical seal with FKM elastomer. With a maximum temperature of 212°F and vertical or horizontal mounting orientations, this close-coupled centrifugal pump is ideal for numerous applications.
Features- Volute: Cast iron, can be rotated for ease of installation. Tapped openings provided for draining.
- Impeller: Enclosed design for high efficiency. Cast iron construction.
- Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers and 300 series stainless components.
- Motor: Standard 3600 rpm JM, open-drip-proof. Designed for continuous operation.
- Mounting: Can be mounted in vertical or horizontal position.
Specifications
Flow Capability
- Up to 150 gpm
Head
- Up to 160 feet
Maximum Working Pressure
- 120 psi
Maximum Temperature
- 212 °F
Pipe Connections
- 2" x 2" NPT
- Water Circulation
- Booster Service
- Liquid Transfer
- Spraying Systems
- Jockey Pump
- General Service
