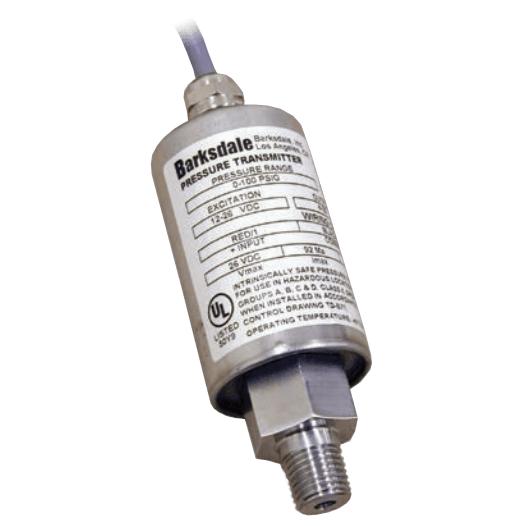

Series 443, 445, 446 Intrinsically Safe Transducer
Brand: BarksdaleBarksdale's 440 Series Intrinsically Safe Transducers provide high accuracy pressure measurement when operating in Class I, Division I environments.
Intrinsically safe transducers prevent personal injury and machinery damage by preventing the explosion in the first place. External zener barriers are required in order to meet UL requirements for an intrinsically safe installation.
The higher cost of having to install a zener barrier is offset with the comfort of knowing that an explosion will not occur within normal operating conditions.
Three models are available:
- Series 443 (0-5V)
- Series 445 (4-20mA)
- Series 446 (0-10V)
- High accuracy
- Protection in hazardous environments, Class I, Division 1
- Superior EMI, ESD and RFI protection
- Rugged all-welded stainless steel construction
- NEMA 4
- Built-in high pressure snubber [psi: 2,000 (kPa: 13,790, bar: 137.9) and above]
- cULus, CE approved
- ATEX / IECEx certified - 445 only
Specifications
Brand
Accuracy
- ± 0.25 % of Full Scale Output at 23.8° C (75° F) (± 0.5 % for Vacuum Only [-23]) Typical
Approvals & Certifications
- ATEX - CE 0081 Ex II 1 G D, Ex ia IIC T4 Ga, Ex ia IIIC T1 35° C Da, -40° C to 70° C, Demko 09-ATEX-143402 IECEx UL 13.0069 - 445 Model Only
- CE 0081
- cULus
- IECEx: Ex II 1 G D, Ex ia IIC T4 Ga, Ex ia IIIC T135° C Da, -40° to 70° C, Demko 09-ATEX-143402 IECEx UL 13.0069 - 445 Model
- UL
Cable Length
- 3 feet (1 metre)
Cable Type
- SJO Typical 4-Wire Cord (1 metre)
Compensated Temperature
- -40° to 70° C (-40° to 158° F)
Conduit Connection
- 1/2” NPT Male
Current
- 3 mA
Electrical Connectors
- 24 AWG
- Cable Connector
- Conductor Cable
- DIN Connector
- Hirschman Connector
- Hirschman Connector with Mating Plug P/N 239236
- PVC Jacketed Shielded Cable
Enclosure, Body Material
- 300 Series Stainless Steel
Environmental Protection
- IP66
- NEMA 4
Excitation Voltage
- Input: 11-28 Vdc - 443 Model
- Input: 12-28 Vdc - 445 Model
- Input: 14-28 Vdc - 446 Model
NPT Connection
- 1/2” NPT Female
- 1/2” NPT Male
- 1/4” NPT Female
- 1/4”-18 NPT Male
Operating Temperature
- -40° to 70° C (-40° to 158° F)
Output
- 0.5 - 5.5 Vdc - 443 Model
- 1-11 Vdc - 446 Model
- 4-20 mA - 445 Model
- Full Scale Output: 10 Vdc ± 0.4 % - 446 Model
- Full Scale Output: 16 mA ± 1 % - 445 Model
- Full Scale Output: 5 Vdc ± 0.8 % - 443 Model
- Zero Output: 0.5 Vdc ± 0.4 % - 443 Model
- Zero Output: 1 Vdc ± 0.2 % - 446 Model
- Zero Output: 4 mA ± 2 % - 445 Model
Pressure Cycles
- 100 Million
Pressure Range
- bar: 0 to 689
- kPa: 0 to 68,950
- psi: 0 to 10,000
Pressure Type
- Absolute
- Gauge
- Vacuum
Proof Pressure
- 2 times Rated Pressure or psi: 13,000 (kPa: 89,630, bar: 884) - Max.
Response Time
- 2 kHz
SAE Connection
- SAE 4
Sensor, Probe Material
- 300 Stainless Steel
Shock
- 50 G at 11 milliseconds, MIL-STD-202 Method 213 (Condition G)
Span & Zero Effect
- 0.01 % Per °F over Compensated Range Reference
Stability
- ± 0.5 % of Full Scale Output Calibration Curve
Storage Temperature
- -40° to 85° C (-40° to 185° F)
UNF/UNC Connection
- 7/16”-20 UNF Female-2B
- 7/16”-20 UNF Male-2A (JIC 37°)
Vibration
- 15 G at 10-2,000 Hz, MIL - STD 202
Wetted Materials
- 17-4 PH (Fitting)
- Cement Plants
- Coal & Oil Fired Power Plants
- Gas Mixing Systems
- Gas Panels
- Gas Transfers for Fuel Systems
- Oil & Gas Pipelines
- Oil Patch
- Petrochemical Plants
- Pulp & Paper Mills
- Refineries
