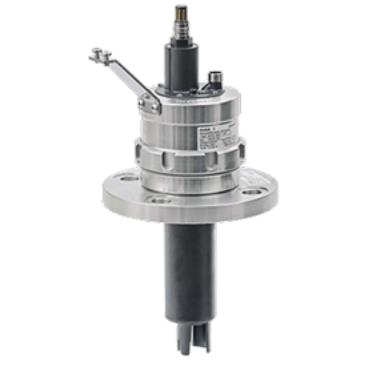

Ceramat 150 Retractable Fitting
Brand: M4 Knick
Features
- For use in extreme applications
- Ceramic process seal for high mechanical strength and chemical resistance
- Plug & play Media Adapter for use with Uniclean® 900/Unical® 9000
- Smooth, buildup resistant design
- Cyclone cleaning
Specifications
Brand
Permitted Process Temperature
- 41° to 248° F (5° to 120° C), for sterilization 266° to 284° F (130° to 140° C)
Permitted Process Pressure
- 87 psi (6 bars) gauge Pressure at 248° F (120° C)
Sensors
- 225 mm, Pg 13.5 coupling
- 250 mm for Pressurized Liquid-electrolyte Sensors
Air Supply
- (4) 5*} ... 7 bars, filtered 10 ... 25 μm, oil- and Condensate-free
Immersion Depth
- Approximately 135 mm, measured from Lower edge of flange to Sensor tip
Certificates
- 3.1 Material Certificate (Optional)
- ATEX II 1 GD c II
