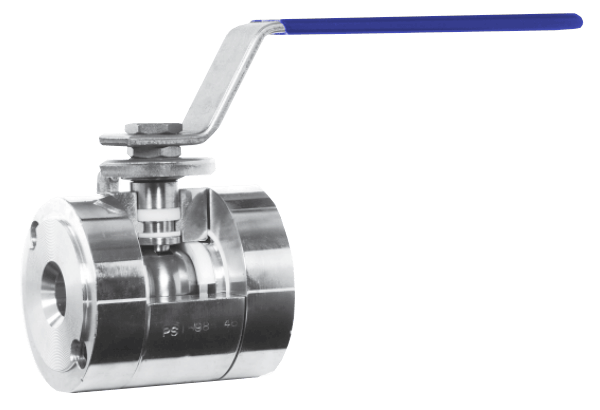

Cameron Three-Piece Wafer Valve, 3100

TBV Series 3100 Three-Piece Wafer Valve

Brand: Cameron
Add Product to My Catalog

Cameron’s TBV Series 3100 is a wafer valve design that provides all of the benefits of a flanged ball valve while reducing both weight and cost.

This unique configuration can be installed between ASME Class 150 through ASME Class 900 Flanges, utilizing the appropriate bolting supplied by TBV.

The design is further enhanced by a bottom entry, blowout proof stem that utilizes belleville washers to maintain a constant packing load. Raised face end plates interlock with the body to reduce radial piping stresses and protect body seals.

The 3100 Series is available in a wide range of body, ball and stem materials, as well as a variety of seat and seal materials to further widen its range of applications.
Features
  • Wafer design reduces weight and cost
  • 1/2" through 3" sizes
  • ASME rated for use between 150 through 900 ASME class flanges
  • Wide variety of materials available for body, ball, stem and seats

View_Details

Specifications

Brand

Actuator Type

  • Gear Operator
  • Handle

Approvals & Certifications

  • ISO 9001
  • TÜV

Approvals & Certifications

  • API 598
  • MSS-SP-25

Ball Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy B
  • Hastelloy C
  • Inconel
  • Monel 400
  • Titanium Grade 2, 5, 7
  • Zirconium

Bearing Material

  • Glass-Filled PTFE - Thrust Bearing

Enclosure Finish

  • Electro-Polishing

Enclosure, Body Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy B
  • Hastelloy C
  • Inconel
  • Monel 400
  • Stainless Steel
  • Titanium Grade 2, 5 & 7
  • Zirconium

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150# ASME
  • 1-1/2" (DN 40) - 300# ASME
  • 1-1/2" (DN 40) - 600# ASME
  • 1-1/2" (DN 40) - 900# ASME

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ASME
  • 1" (DN 25) - 300# ASME
  • 1" (DN 25) - 600# ASME
  • 1" (DN 25) - 900# ASME

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - 150# ASME
  • 1/2" (DN 15) - 300# ASME
  • 1/2" (DN 15) - 600# ASME
  • 1/2" (DN 15) - 900# ASME

Flange Size - 2-1/2” (DN 65)

  • 2-1/2" (DN 65) - 150# ASME
  • 2-1/2" (DN 65) - 300# ASME
  • 2-1/2" (DN 65) - 600# ASME
  • 2-1/2" (DN 650) - 900# ASME

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# ASME
  • 2" (DN 50) - 300# ASME
  • 2" (DN 50) - 600# ASME
  • 2" (DN 50) - 900# ASME

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# ASME
  • 3" (DN 80) - 300# ASME
  • 3" (DN 80) - 600# ASME
  • 3" (DN 80) - 900# ASME

Flange Size - 3/4” (DN 20)

  • 3/4" (DN 20) - 150# ASME
  • 3/4" (DN 20) - 300# ASME
  • 3/4" (DN 20) - 600# ASME
  • 3/4" (DN 20) - 900# ASME

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150# ASME
  • 4" (DN 100) - 300# ASME
  • 4" (DN 100) - 600# ASME
  • 4" (DN 100) - 900# ASME

Flange Size - 6” (DN 150)

  • 6" (DN 150) - 150# ASME
  • 6" (DN 150) - 300# ASME
  • 6" (DN 150) - 600# ASME
  • 6" (DN 150) - 900# ASME

Flow Capacity

  • 8 to 370 Cv for Valve Size [1/2" to 3" (12.7 to 76.2 mm)]

Handle Assembly Material

  • 300 Stainless Steel

Materials of Construction

  • 300 Stainless Steel - Stop, Lock Washer
  • 630 Stainless Steel - Belleville Washer

Nut & Bolt Material

  • 300 Stainless Steel - Stem Nut & Bolt
  • 316 Stainless Steel - Bolt
  • ASTM A193 B7 x A194 Grade 2H - Bolt
  • ASTM A193 B8M x A194 8M - Bolt
  • Carbon Steel - Bolt
  • Hastelloy C - Bolt
  • Monel K500 - Bolt
  • Titanium Grade 5 - Bolt

Port

  • Reduced (Standard, Regular)

Pressure Range

  • psig: 0 to 4,000 (kPa: 0 to 27,600, bar: 0 to 276)

Screw Material

  • 300 Stainless Steel - Shipping Screw

Seat / Seal Material

  • Seal: Grafoil
  • Seat: 15 % Glass-Filled PTFE
  • Seat: Cryofil
  • Seat: CTFE
  • Seat: Delrin AF
  • Seat: Graphite
  • Seat: Metal
  • Seat: Reinforced PTFE
  • Seat: Thermafil
  • Seat: UHMWP
  • Seat: Ultrafil
  • Virgin PTFE

Stem Material

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel
  • Hastelloy B
  • Hastelloy C
  • Inconel
  • Monel 400
  • Titanium Grade 2, 5 & 7
  • Zirconium

Temperature Range

  • -18° to 538° C (0° to 1,000° F)
