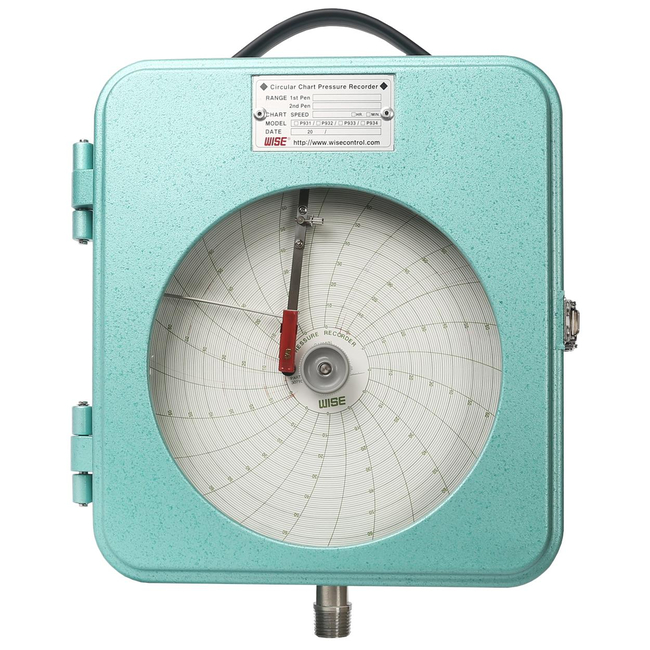

Chart Recorder P930 Series
Brand: Wise Control IncP930 series pressure recorder provides a single or dual pen 200 mm circular chart recorder for measurement.
It is suitable for hazardous environment such as gas or chemical process lines.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
Case & Cover
- ALDC 12.1
- Hinged Door
Chart Drive
- 2. Battery Typical: 30 Min, 96 Min, 1, 2, 4, 6, 8, 12 Hours & 1, 2, 7, 8, 14, 16, 31, 32 Days Selectable for Portable Typical
- 1. Spring Wound Typical: 24, 168 (7 Day) Hours Rotation
Chart Paper
- 200 mm Circular
Element
- Bellows, Brass
- Bourdon Tube: 316 Stainless Steel
Mounting
- Surface Mounting & Portable Typical
Movement
- Brass
Nominal Diameter
- 246 (W) x 271 mm (H)
Pressure Connection
- 316 Stainless Steel
Process Connection
- 3/8”, 1/2” PT, NPT & PF
Scale Range (MPa, KPa, bar)
- Pressure: 0 ~ 5 kPa to 0 ~ 100 MPa
Window Material
- Acrylic Resin
Working Pressure
- Steady Pressure: 75 % of Full Scale
- Over Range Protection: 130 % of Full Scale
Working Temperature
- Ambient: -40° to 65° C
- Fluid: Max.
