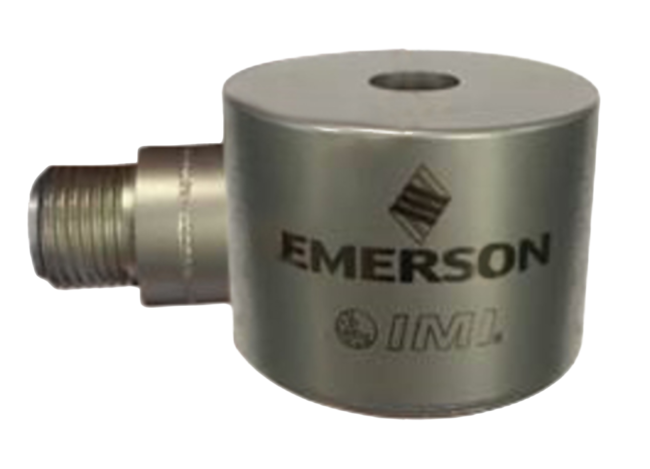

A0323TX-EX Triaxial Accelerometer

Brand: AMS

Capture three axis measurements simultaneously plus PeakVue measurement from just one sensor and a single cable to the monitoring system.
Features
  • Capture three measurements plus PeakVue simultaneously from one sensor
  • CSA and ATEX approved

Specifications

Brand

Sensitivity (±10%)

  • 100 mV/g (10.2 mV/m/s²) all 3 axis

Measurement Range

  • ± 50 g (± 490 m/s²)

Frequency Range ± 3 bB (all 3 Axis)

  • 0.5 Hz to 10 kHz (30 to 600 kcpm)

Mounted Resonant Frequency

  • 23 kHz (1500 kcpm)

Amplitude Linearity

  • ± 1%

Transverse Sensitivity

  • ≤ 7%

Certifications & Approvals

  • CSA
  • ATEX

Documentation
