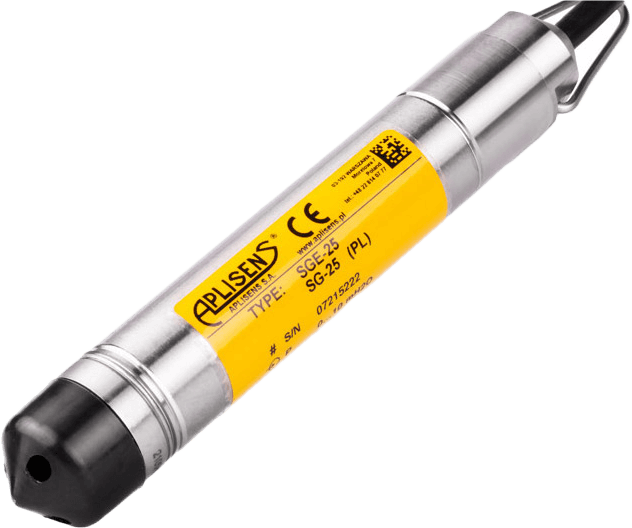

SGE-25 / SGE-16 Hydrostatic Level Probe

Brand: Aplisens S.A.

Features
  • Any measurement range from 1 up to 500 m H2O
  • Integrated internal overvoltage protection circuit
  • Marine certificate DNV
  • ATEX Intrinsic safety

Specifications

Certifications & Approvals

  • ATEX
  • DNV

Accuracy

  • 0.6 % FSO Acc. to IEC 60770
  • 0.3 % FSO Acc. to IEC 60770
  • 0.2 % FSO Acc. to IEC 60770
  • 0.3 % FSO Acc. to BFSL
  • 0.15 % FSO Acc. to BFSL
  • 0.1 % FSO Acc. to BFSL

Thermal Error

  • Typical 0.3 % / 10° C max. 0.4 % / 10° C
  • Typical 0.2 % / 10° C max. 0.3 % / 10° C

Long Term Stability

  • 0.1 % or 1 cm H₂O for 1 year

Hysteresis, Repeatability

  • 0.05%

Thermal Compensation Range

  • -10° to 70° C

Medium Temperature

  • -30° to 80° C

Measuring Range

  • SGE-25: 1 to 500 mH₂O
  • SGE-16: 10 to 100 mH₂O

Output Signal

  • 4-20 mA
  • 0-10 V
  • 0-3.3 V
  • 0.5-4.5 V

Power Supply

  • 8-36 Vdc
  • 9-28 Vdc
  • 13-30 Vdc
  • 5.5-16 Vdc
  • 4.1-5.6 Vdc
  • 8-16 Vdc
  • 5.0-5.6 Vdc
  • 3.6-4.5 Vdc

Diaphragm Material

  • SGE-25: Hastelloy C-276 (optionally 316L Stainless Steel)
  • SGE-16: 316L Stainless Steel

Case Material

  • 316L Stainless Steel

Cable Shield

  • PU, ETFE, PTFE

Environmental Protection

  • IP68

  • SGE-25: Measure Liquid Levels in Tanks, Deep Wells or Piezometers
  • SGE-16: Measure Water Levels in Narrow Diameter Piezometers or Wells
