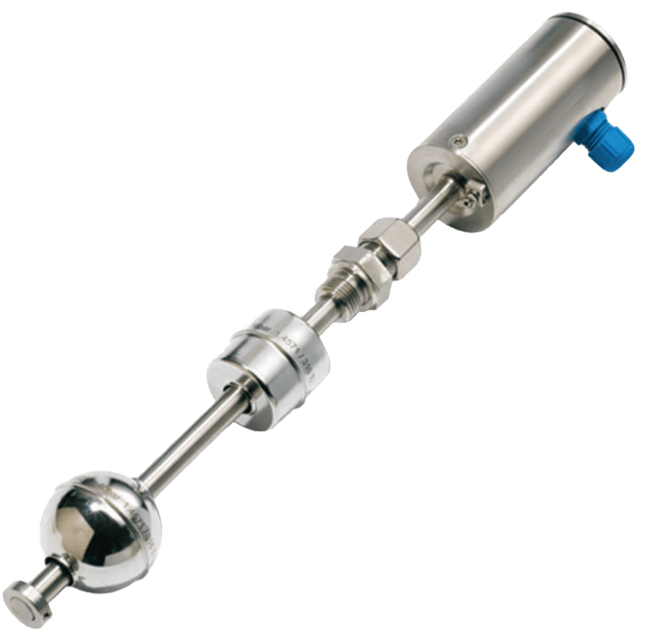

XT-1000 Series Magnetostrictive Level Sensor
Brand: Gems Sensors, Inc
The high-precision and robust level sensor is designed to provide continuous gauging of liquid media levels in tanks.
The measuring principle used by the sensor exploits the physical effect of magnetostriction and is largely unaffected by temperature.
Magnetostriction is particularly ideal where level measurements are required to be extremely accurate, e.g. in the chemical industry.
The level sensor outputs measuring signals in the range 4-20 mA. Available in lengths of 8 to 157" (200 to 4,000 mm), it is compatible with a variety of tank dimensions.
The explosion-proof version of the level sensor can be installed in potentially explosive atmospheres in which electrical equipment of category 1 (zone 0) or category 1/2 (zone 0/1) are required.
Operating on the digital HART protocol, the HART level sensor is able to output the position of the first, second or both floats.
Features- Measuring accuracy up to ±0.008" (0.2 mm)
- Resolution better than 0.004" (0.1 mm)
- Temperature-compensated
- 2-wire terminal (4-20 mA)
- Measuring range along the complete probe length
- Lengths of 8 to 157" (200 to 4,000 mm)
Specifications
Brand
Accuracy
- ± 0.008” (0.2 mm)
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Applications
- Chemical Industry
Approvals & Certifications
- ATEX
BSP Connection
- G 1/2” Male
- 1-1/2” BSPT Male
Communication
- HART
Diameter
- Cable Diameter: 0.19” to 0.394” (5 to 10 mm)
Electrical Connectors
- Cable Gland M16 x 1.5
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP68
Flange Material
- 316 Stainless Steel
Flange Size - 1” (DN 25)
- 1” (DN 25) - PN 6 (DIN)
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 6 (DIN)
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150#
Fluid Specific Gravity
- ≥ 0.5
Materials of Construction
- Float: 316Ti Stainless Steel
- Float: Hastelloy C-276
- Float: Titanium
- Mounting: 316 Stainless Steel
- Mounting: Brass (Only R Connection)
Measurement Accuracy
- Analog Part: ± 0.1 %/K, Resolution Better 0.5 µA
- Filling Level: up to 0.020” (0.5 mm)
Media
- Liquids
NPT Connection
- 2” NPT Male
Operating Pressure
- psi: 725 (kPa: 5,000, bar: 50) - Max.
Output
- 4-20 mA
Principle of Operation
- Magnetostrictive Principle
Process Temperature
- -65° to 450° C (-85° to 842° F)
Resolution
- Up to 0.004” (0.1 mm)
Sensor / Probe Diameter
- 0.47” (12 mm)
Sensor / Probe Length
- 8 to 157” (200 to 4,000 mm)
Sensor / Probe Material
- 316Ti Stainless Steel
- Hastelloy C
Sensor / Probe Style
- Float
Supply Voltage
- 10-30 Vdc
