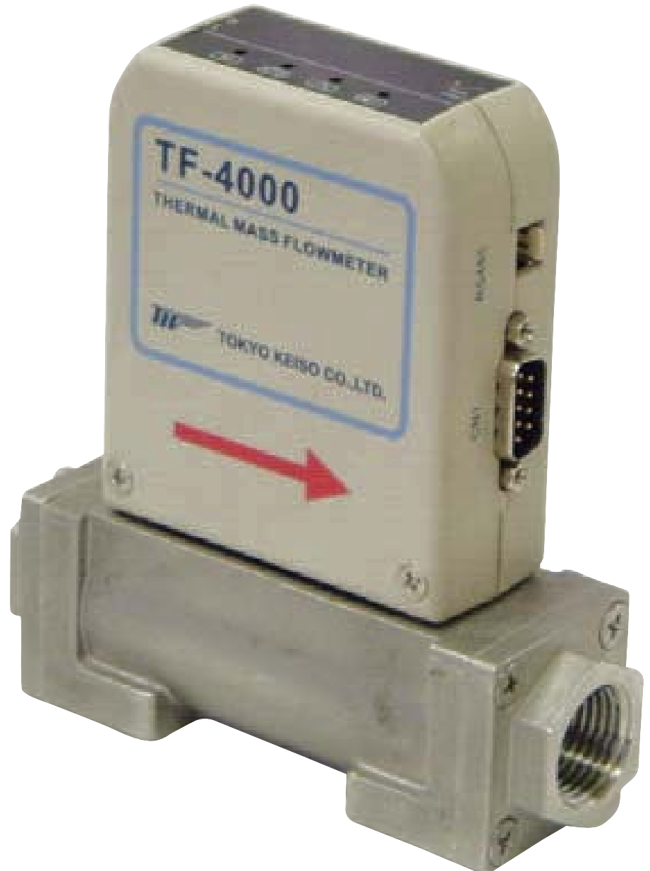

TF-4000 Series Thermal Mass Flowmeter
Brand: Tokyo Keiso Co, LtdTF-4000 is a series of newly designed Thermal Mass Flowmeter for gas flow measurement.
Highly reliable flow sensing measures total gas stream and such features as digital indication and RS485 output are additionally provided.
Features- Mass flow measurement free from changes in operating pressure and temperature
- Compact design suitable for assembling onto various equipment
- Such features as digital indication and RS485 output open up new fields of flow measurement and control
- High speed response has been realized by the highly reliable and compact Pt thermal detector
- Improvement in linearity has been achieved by the microcomputer
- Corresponding to "CE marking"
Specifications
Brand
Approvals & Certifications
- CE
BSP Connection
- 1/2” BSPT Female
- 1/4” BSPT Female
- 3/4” BSPT Female
- 3/8” BSPT Female
Enclosure, Body Material
- ABS Resin
- Main Body: Cast Stainless Steel
Seat / Seal Material
- Seal: Fluororubber
Sensor, Probe Material
- Sensor: 316 Stainless Steel
- Sensor: CTFE
- Sensor: Glass
- Sensor: Platinum-Iridium
