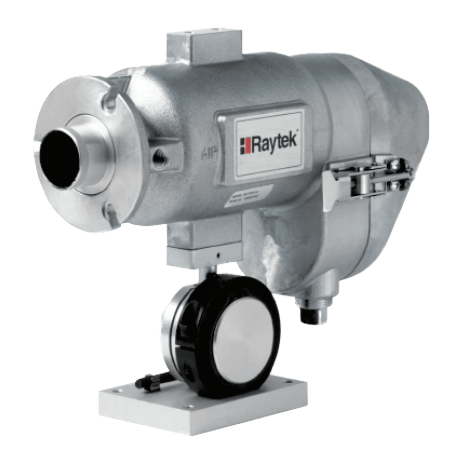

ThermoJacket Sensor Protection
Brand: Raytek
Features
- ThermoJacket withstands ambient temperatures up to 315° C (600° F)
- Thermal or mechanical environmental protection for MR, MM, TX or XR sensing heads
- Air/water cooling and air purge in one unit
Specifications
Brand
Ambient Temperature Range
- 115° C (239° F) - with Air Cooling
- 315° C (599° F) - with Water Cooling
- 93° to 315° C (200° to 600° F)
Approvals & Certifications
- CE
Flow Rate
- 9.2 to 12 gpm (35 to 48 LPM) - Air Purge Flow
Mounting
- Adjustable Wall Mount
NPT Connection
- 1/4” NPT
- 3/4” NPT
Pressure Range
- psi: 40 to 125 (kPa: 275 to 860, bar: 2.75 to 8.61) - Water Cooling
- psi: 80 to 120 (kPa: 550 to 827, bar: 5.51 to 8.27) - Air Cooling
