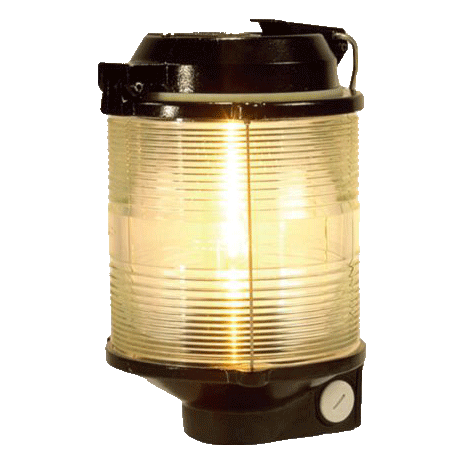

Navigation Light Series TEF2850

Navigation Light Series TEF2850

Brand: R. STAHL AG
Add Product to My Catalog

Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world.

Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’ expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting.

Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
Features
  • Integrated terminal box
  • Hinged on top - enabling quick replacement of light source
  • All round lanterns are delivered with mounting bracket for 2“ pipe
  • Designed for use in arctic and tropical waters
  • Resistant to vibrations
  • Lens of through-colored glass, no discoloration during the lifetime of the lantern.

1 - 9 of 9 Part Numbers
165885
165885
R. STAHL Navigation Light 2850 M Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 M lamp
  • Product Type - TEF2850009
  • Title Product Variant Technical Data - TEF28500029 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Masthead
  • Opening angle - 225.0 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 5 nm
  • Visibility range over 50 m - 85W/65cd - min. 6 nm

Mechanical Data

  • Colour of glass - white
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165886
165886
R. STAHL Navigation Light 2850 SB Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 SB lamp
  • Product Type - TEF2850109
  • Title Product Variant Technical Data - TEF28501029 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Starboard
  • Opening angle - 112.5 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 2 nm
  • Visibility range over 50 m - 85W/65cd - min. 3 nm

Mechanical Data

  • Colour of glass - green
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165887
165887
R. STAHL Navigation Light 2850 P Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 P lamp
  • Product Type - TEF2850209
  • Title Product Variant Technical Data - TEF28502029 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Port
  • Opening angle - 112.5 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 2 nm
  • Visibility range over 50 m - 85W/65cd - min. 3 nm

Mechanical Data

  • Colour of glass - red
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165888
165888
R. STAHL Navigation Light 2850 ST.R Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 ST.R lamp
  • Product Type - TEF2850329
  • Title Product Variant Technical Data - TEF28503229 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Suez stern light
  • Opening angle - 135.0 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 2 nm
  • Visibility range over 50 m - 85W/65cd - min. 3 nm

Mechanical Data

  • Colour of glass - red
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165889
165889
R. STAHL Navigation Light 2850 ST.Y Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 ST.Y lamp
  • Product Type - TEF2850339
  • Title Product Variant Technical Data - TEF28503329 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Stern cleats
  • Opening angle - 135.0 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 2 nm
  • Visibility range over 50 m - 85W/65cd - min. 3 nm

Mechanical Data

  • Colour of glass - yellow
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165890
165890
R. STAHL Navigation Light 2850 ST Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
165891
165891
R. STAHL Navigation Light 2850 a Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 A lamp
  • Product Type - TEF2850509
  • Title Product Variant Technical Data - TEF28505029 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Allround light
  • Opening angle - 360.0 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 5 nm
  • Visibility range over 50 m - 85W/65cd - min. 6 nm

Mechanical Data

  • Colour of glass - white
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165892
165892
R. STAHL Navigation Light 2850 AG Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 AG lamp
  • Product Type - TEF2850519
  • Title Product Variant Technical Data - TEF28505129 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Allround light
  • Opening angle - 360.0 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 2 nm
  • Visibility range over 50 m - 85W/65cd - min. 3 nm

Mechanical Data

  • Colour of glass - green
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
165893
165893
R. STAHL Navigation Light 2850 AR Lamp
Integrated terminal box

Hinged on top - enabling quick replacement of light source

All round lanterns are delivered with mounting bracket for 2“ pipe

Designed for use in arctic and tropical waters

Resistant to vibrations

Lens of through-coloured glass, no decolouration during the lifetime of the lantern.

Ambient Conditions

  • Ambient temperature - -52 °C ... +45 °C
  • Ambient temperature max. - +45 °C
  • Ambient temperature min. - -52 °C

Components

  • Drilled holes - 1 x M20
  • Screw connections - 1 x M20 Ø 6.5 – 14 mm

Electrical Data

  • Power - 85.00 - 85.00 W
  • Rated operational voltage AC - 230.00 - 230.00 V

Explosion Protection

  • Ambient temperature °C - -52 - 45 °C
  • Application range (zones) - 2
  • ATEX gas certificate - PRESAFE 14 ATEX 5436X
  • Gas explosion protection ATEX - II 3 G Ex nR IIC T5 Gc
  • Gas explosion protection IECEx - Ex nR IIC T5 Gc
  • IECEX gas certificate - IECEx PRE 14.0055X

General

  • Functional Description - Extensively tested in rough environments, navigation lights from Tranberg are the obvious choice by many vessel designers, ship owners and yards throughout the world. Our products and services meet the highest quality standards, perform reliably and efficiently to exceed customers’expectations and assure market competitiveness. The design of Tranberg’s navigation lights is based on many years of experience and research in the field of professional Marine lighting. Carefully selected materials are used to ensure maximum performance, low maintenance and long trouble free life.
  • Highlights - Integrated terminal box Hinged on top - enabling quick replacement of light source All round lanterns are delivered with mounting bracket for 2“ pipe Designed for use in arctic and tropical waters Resistant to vibrations Lens of through-coloured glass, no decolouration during the lifetime of the lantern.
  • Product Description - Navigation light 2850 AR lamp
  • Product Type - TEF2850529
  • Title Product Variant Technical Data - TEF28505229 Lantern Vessels > 20m
  • WebCode - T2850A

Lighting Data

  • Effective luminous intensity - 65 cd
  • Lamp - B22 lamp base
  • Lamp type - Allround light
  • Opening angle - 360.0 °
  • Visibility range 20 … 50 m - 55W/35cd - min. 2 nm
  • Visibility range over 50 m - 85W/65cd - min. 3 nm

Mechanical Data

  • Colour of glass - red
  • Degree of protection (IP) - IP56
  • Enclosure material - Aluminium, powder-coated
  • Height - 245.000 mm
  • Length - 180.000 mm
  • Material Dome - Lens made of stained glass
  • Type of connection cable - Finely stranded, solid
  • Weight - 4.000 kg
  • Width - 180.000 mm
1 - 9 of 9 Part Numbers

Documentation

Data Sheet

Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
