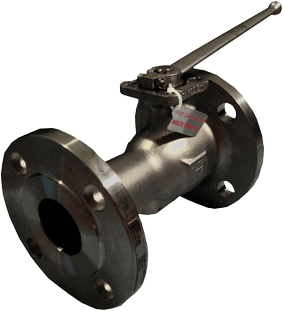

1 Piece Carbon Steel Ball Valve #156R-150DM
Brand: Ohio Valve CompanyStandard Port Ball Valve, ANSI 150 lbs, Flanged Ends, Locking Handle, and Direct Mount.
Features- ISO 9002
- The flange ends refers to ANSI B 16.5
- Face to Face: ANSI B 16.10
- Wall thickness: ANSI B 16.34
- Investment casting up through 4"
- Blow-out proof stem
- Standard Port
- TFM1600 seat
- PTFE seal & packing (live loaded)
- ISO mounting pad
- Anti-Static Device
- Locking handle
- All valves tested and inspected to API-598
- Direct mount for actuation
- API 607 Fire safe approved
Specifications
Brand
Nominal Pipe Size
- DN 25 - DN 100 (1” - 4”)
Nominal Pressure
- Class 150
Working Temperature
- -20° C - 200° C (-4° F to 392° F)
Medium
- Water, Steam, Oxygen, Vacuum, Chemical, Oil, Food Processing
Pressure Test
- API 598
