Kobold Variable Area Flowmeter, UTS

UTS Variable Area Flowmeter

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Kobold Variable Area Flowmeter, UTS Kobold Variable Area Flowmeter, UTS

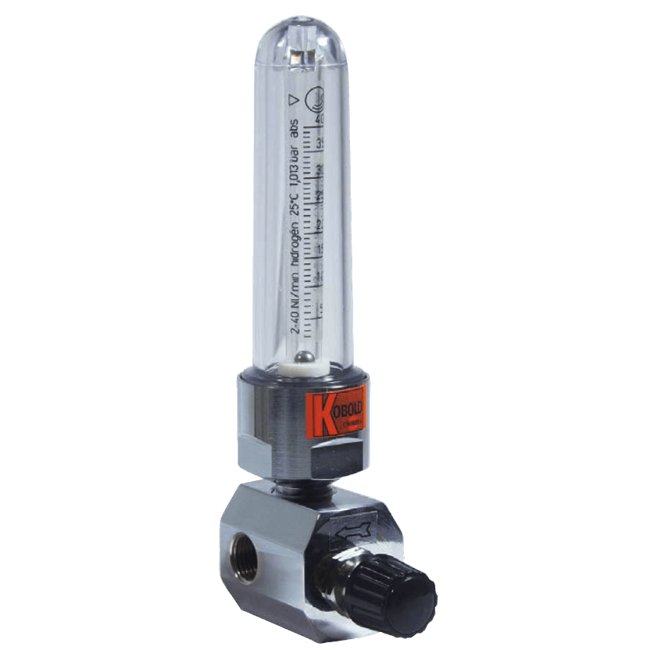

The Kobold flowmeter model UTS works on the basis of the suspended float principle. It comes with a M18 x 1.5 connection.

The inflow of the medium is via 4 mm hole within this connection, whereas the outflow happens via six holes which are concentrically positioned around the inlet hole. This special connection is specifically made for UTS and provided with a special seal.

This flowmeter can be optionally supplied with a special adapter G ¼ or ¼" NPT for horizontal installation. The use of this adapter is always recommended because of its special design.

Especially in tight places, where conventional devices do not fit best because of their size, the UTS is an automatic choice.

The device is suitable for monitoring gas burners (e. g. oxygen, hydrogen,  methane, inert gases e.g. MIG welding) due to its low price and possibility of an easy measuring tube exchange.

The armature is made of nickel plated brass or stainless steel with impact resistant polystyrene protection bulb.

View_Details

Specifications

Brand

Accuracy

  • Class 4

Air Flow Capacity

  • 0.01 to 3.0 Nm³/hour

Ambient Temperature Range

  • 0° to 50° C (32° to 122° F)

BSP Connection

  • G 1/4"

Bulb Material

  • Polystyrene

Connection Material

  • 304 Stainless Steel
  • Nickel-Plated Brass

Electrical Connectors

  • 4 mm Hole
  • With Adapter: G 1/4" or 1/4" NPT (for Horizontal Pipes)
  • Without Adapter: M18 X1.5 Axial Special Connection

Enclosure / Body Material

  • 304L Stainless Steel
  • 316 Stainless Steel
  • Nickel-Plated Brass

Environmental Protection

  • IP65

Gasket Material

  • FPM
  • NBR

Materials of Construction

  • 304L Stainless Steel - Float, Valve & Fitting Material
  • Borosilicate Glass - Tube Material
  • Nickel-Plated Brass - Fitting Material

Maximum System Pressure

  • psi: 43.5 (kPa: 300, bar: 3)

NPT Connection

  • 1/4" NPT

O-Ring Material

  • FPM
  • NBR

Process Temperature

  • 0° to 65° C (32° to 149° F)

Temperature Range

  • Maximum

Documentation

Data Sheets
