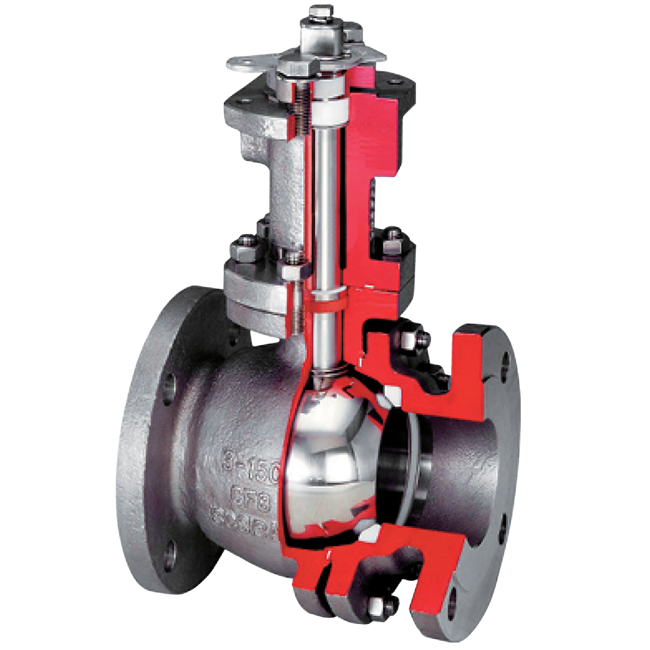

Model Cryogenic
Brand: KTMKTM ball valves have been widely used in low temperature and cryogenic applications, including LNG (Liquefied Natural Gas) which is fast becoming a better alternative source of energy.
Features- Two types of extension bonnet lengths available to optimize the location of the gland packing at ambient temperature thus preventing freeze-damage by low temperature fluid.
- Cavity pressure self relief construction.
- Excellent seat and seal design minimizes leakage.
- Low operating torque for smooth operations.
- Fire safe design available for flammable applications.
- Fugitive emissions control for flammable and non-flammable applications.
- Rigid body construction to minimize thermal shrinkage.
Specifications
Brand
Approvals & Certifications
- CE, CRN, Fire Safe, Fugitive Emission, Lloyd's Register, SIL Capable, PED, KGS, NACE
Body Design
- Long Pattern, Side Entry
End Connection
- Flanged
Material
- 304/316 Stainless Steel
Media
- Cryogenic, Liquid Propane, Liquid Propane Gas
Operating Temperature
- Cryogenic, Low Temperature, less than 200° C
Pressure Class
- ASME
Process Connection Type
- 150 RF, 300 RF, Class 150 RF, Class 300 RF
Seat / Seal Type
- Ball, Soft Seal
Shutoff Class
- API 598
Standards
- API 608, ASME B16.34
Valve Size
- NPS 1 / DN 25, NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 3 / DN 80, NPS 3/4 / DN 20, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200
Valve Size Standard
- DN, NPS
Valve Type
- Floating Ball Valve, Ball Valve
- Low Temp
- Cryogenics & Refrigeration
- Fuel Management Systems
- LNG Carrier
- Low Temperature
- Storage & Distribution
