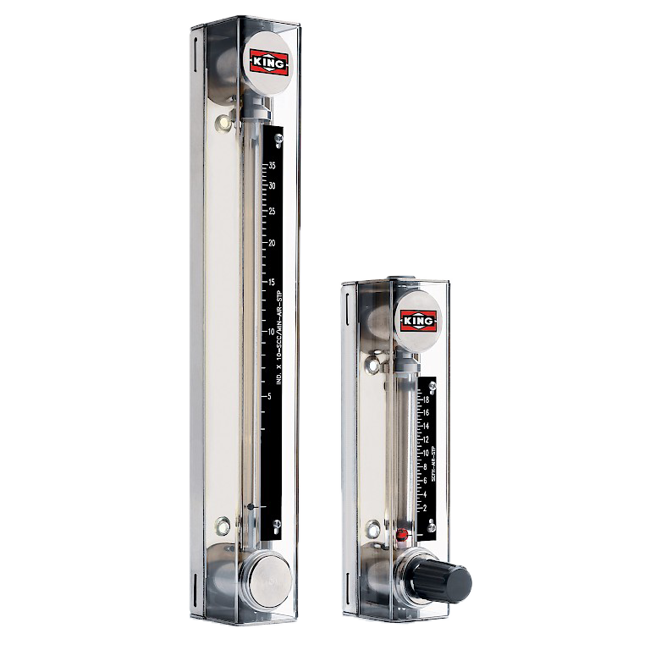

7430 Series - Glass Tube Flowmeters
Brand: King Instrument CompanyBoth 65 mm and 150 mm scales, borosilicate glass tube models feature all stainless steel frame and horizontal connections at a less expensive price than competitive products. Valve optional.
Features- Low-Flow and Gas Purge Applications
- Borosilicate Glass Metering Tube
- Stainless Steel Frame with Horizontal Connections
- 65 mm or 150mm Scale
- 0.72 – 1,800 cc/min Water; 66 – 70,000 cc/min Air
Specifications
Brand
Internal Components
- 316L Stainless Steel
- black glass
- sapphire
- Carboloy
- Tantalum
Fitting Material
- 316L Stainless Steel
- PVC
- PVDF
- Hastelloy®
Inlet/Outlet Fittings
- 1/8" and 1/4" FNPT, horizontal control valve optional
O-Ring
- Viton
- Buna-N
- EPR
- Kalrez®
Capacities
- Water: 0.56 to 1,800 cc/min
- Air: 54 to 70,000 cc/min
Scale
- 65 mm, 150 mm direct reading, detachable
Accuracy
- ± 6 % of full scale flow, 65 mm
- ± 4 % of full scale flow, 150 mm
Turndown
- 10:1
Repeatability
- 1%
Maximum Temperature
- Gases: 250° F
- Liquids: 200° F
Maximum Pressure
- 316L Stainless Steel fittings: 200 psig
- PVC fittings: 130 psig
- PVDF fittings: 150 psig
