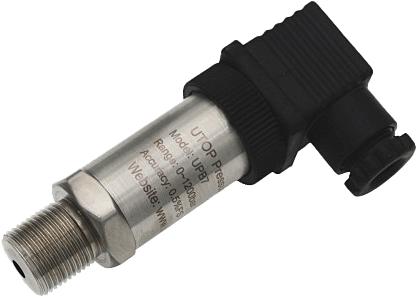

3000 Bar Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, LtdUPB7 strain gauge 3000 bar pressure transmitter uses advanced metal foil strain gauges as sensing element.
Those strain gauges consist a Wheatstone bridge and can feel the changes of the strain gauge’s resistance and convert these changes to “mV” electrical signal, the signal will be amplified to standard current or voltage output after it is conducted by the special amplifiers.
Features- Range up to 5000 bar
- Anti-corrosion anti-attrition anti-impact
- Suitable for the measurement of middle pressure and high pressure
- Wide application scope long service life
Specifications
Pressure Ranges
- 0 ~ 40...5000 bar
Overload Pressure
- 150 % Full Scale
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V
Accuracy
- 0.25 % Full Scale (Standard), 0.5 % Full Scale
Load Resistance
- RL= (U-9 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Compensated Temperature Range
- -10° ~ +60° C
Operating Temperature Range
- -20° ~ +80° C
Temperature Coefficient of Zero
- 0.25 % Full Scale/10° C
Temperature Coefficient of Span
- 0.25 % Full Scale/10° C
Process Connection
- G1/4” or others
Electrical Connection
- Hirschmann or others
Material of Wetted Part
- 17-4 PH
Material of Pressure Membrane
- 17-4 PH
Material of Housing
- 1Cr18Ni9Ti
- The Application of UPB7 Strain Gauge 3000 bar Pressure Transmitter is very wide these days, it is suitable for the Measurement of Middle and High Pressure
