MODBUS Level Transmitter

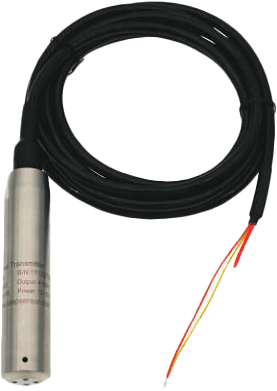

Brand: Xi'an UTOP Measurement Instrument Co, LtdULB-I MODBUS Level Transmitter is a fully sealed submersible intelligent level measuring instrument.
Based on silicon piezoresistive technology, this product is designed for liquid level measurement by using silicon die with good stability and processing electric circuit of high accuracy smart transmitter, and using precise digital temperature compensation technology and the non-linearity revision technology.
The waterproof cable with vent hose of this MODBUS Level Transmitter is sealed connected with its housing, it is suitable for submersible applications.
The output of ULB-I is digital signal, this makes this MODBUS Level Transmitter carry on transmission with computer directly.
Features- Data networking gathering
- Advanced circuit design
- HART protocol or MODBUS protocol (RS485 interface)
- Full stainless steel structure, small profile, light weight
- Digital communication technology
Specifications
Pressure Medium
- Gas or Liquid Compatible to Wetted Stainless Steel
Pressure Ranges
- 0 ~ 1 mH₂O...200 mH₂O
Overload Pressure
- 150 % Full Scale
Output Signal
- Digital Signal or Digital Signal with 4~20 mA Analog Signal
Communications
- Modbus Protocol (RS-485 Interface) or HART Protocol
Accuracy
- 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS
Load Resistance
- RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Long-Term Stability
- < 0.2 % Full Scale/year
Supply Voltage
- 12 ~ 32 Vdc
Compensated Temperature Range
- -10° ~ +70° C
Operating Temperature Range
- -30° to 100° C
Storage Temperature Range
- -40° to 120° C
Temperature Coefficient of Zero
- 0.2 % Full Scale/10° C
Temperature Coefficient of Span
- 0.2 % Full Scale/10° C
Electrical Connection
- Ø 7.2 mm PUR Cable with Vent Hose
Material of Wetted Part and Housing
- 316 Stainless Steel
Material of Pressure Membrane
- 316L Stainless Steel
- ULB-I MODBUS Level Transmitter is Designed with IP68 Protection, it is Widely Applied in Petroleum, Chemical Industry, Medicine, Metallurgy, Hydrology Exploration etc.
