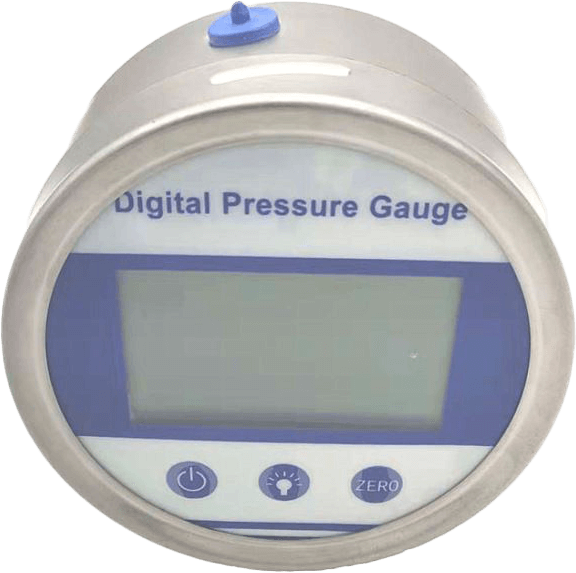

Air Digital Pressure Gauge
Brand: Xi'an UTOP Measurement Instrument Co, LtdUIY8 Air Digital Pressure Gauge is made with entire electronic structure, and uses battery as power supply. It adopts high accuracy piezoresistive pressure sensor, which is located in the front end of the digital pressure gauge.
The output signal of the pressure sensor is processed and amplified by high accuracy and low temperature coefficient amplifier, then transferred to A/D switch to transform digital signal which can be processed by microprocessor.
After processing operation, this air digital pressure gauge will demonstrates the actual value of the pressure by LCD indicator.
Features- Double screen, clear and easy to read
- The screen display 5 digit real-time pressure
- The second screen can display the maximum, minimum, peak value, ambient temperature
- 10 kinds of selectable engineering units: MPa, kPa, Pa, bar, psi, mmH₂O, mH₂O, tor, atm, kgf
- Acquisition rate 30 sec per time to 100 times per sec optional, widely applied
Specifications
Pressure Gauges
- -1...0 ~ 0.1...1000 bar
Overload Pressure
- 150 % Full Scale
Accuracy
- 0.1 % FS, 0.25 % FS, 0.5 % FS
LCD Display
- 5-digit
Battery Power Supply
- 3.6 V Battery
Compensated Temperature Range
- 10° ~ +70° C
Operating Temperature Range
- -30° to +100° C
Process Connection
- G1/2” or others
Housing Material
- 304 Stainless Steel
- UIY8 Intelligent Pressure Gauge is widely used in such Industries as Water and Electricity, Running Water, Petroleum, Chemical, and Machinery, for the Measurement and Demonstration of Fluid Medium's Pressure
