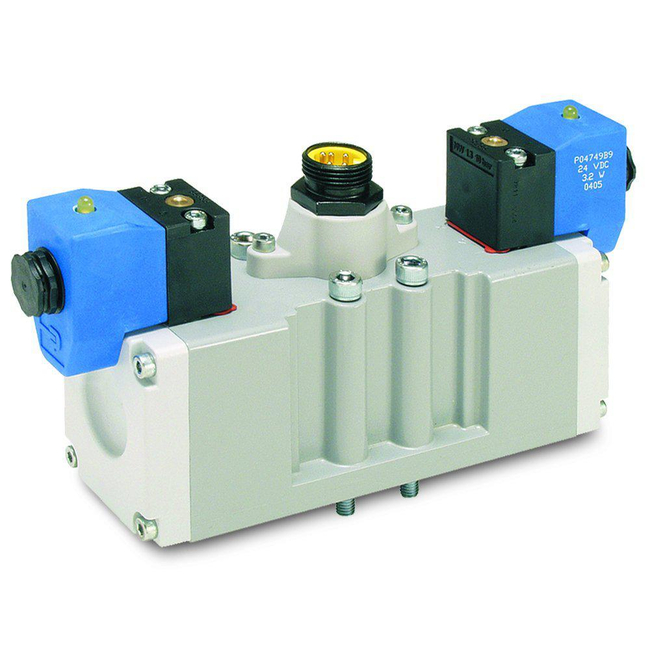

Pneumatic Solenoid ISO Valve - H Series ISO 5599-1 & 5599-2

Brand: Parker - Fluid Control Division

Add Product to My Catalog

The H Series ISO Valve is a family of base mounted valves available in five size ranges (Sizes 02, 01, 1, 2 and 3) with flow from 0.55 to 6 Cᵥ for right sizing the application.

The product family has 5/2 or 5/3 functions with a dual 3/2 function available in size 02.

Plugin or non-plugin valve types mounted on a single subbase or manifolds provide the convenience of multiple wiring options.

Electrical connections can be made on the valve or through the manifold using either hard wire or industrial networking technologies.

The H Series ISO family includes multiple collective wiring and networking options to connect back to the controller.

Valve sizes 02, 01, 1 and 2 can be mounted on the same manifold without transition kits to right size the valve for the application with no wasted space when using the universal manifold. Designed to ISO 5599 and 15407 standards.

Features

Right sizing is the ability to use different size valves on one manifold to maximize cost savings and space.
ISO valve platforms, such as Parker H Series ISO 5599 and 15407, assures easy maintenance, replacement, or modifications in the future.
Pneumatic zoning allows for multiple pressure zones in one manifold for different working pressures.
Ability to build a high density manifold up to 32 addressable solenoids.
A pilot exhaust module allows the disconnection of pilot pressure to bring the valve to a safe state quickly while maintaining main supply pressure. Apply in safe state zoning or cylinder rod lock applications.
The manifold end plate easily converts from internal to external pilot to provide pilot pressure to all zones.
