LATTYflon 4308 Graphited PTFE Packing, Dedicated To Applications on Rotary Pumps with Chemically Aggressive Fluids

Brand: Latty International S.A.

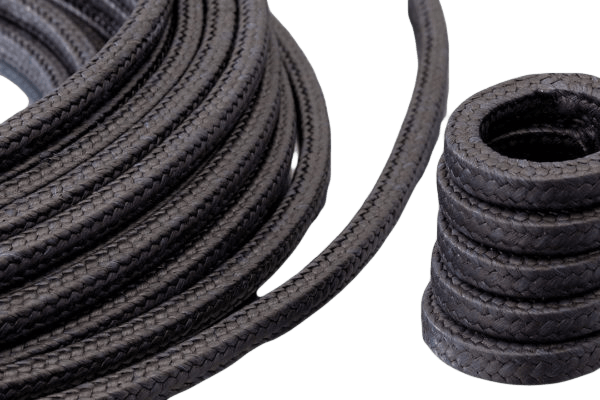

Packing made of 100% PTFE silk yarns, pre-treated with continuous graphite impregnation then re-impregnated with a silicon lubricant.

Available in preformed packing rings, on request. Graphited PTFE packing, dedicated to applications on rotary pumps with chemically aggressive fluids.
Features
  • Chemical Inertness
  • High Resistance to Chemical Aggressions
  • High Heat Dissipation
  • Outstanding Heat Transfer Coefficient
  • High Electrical Conductivity
  • Withstand High Speed
  • Low Friction Coefficient
  • Self-Lubricating

Specifications

Pressure

  • 0 to 110 bar
  • 0 to 11 MPa
  • 0 to 1595 psi

Temperature

  • -200° to 300° C
  • -328° to 572° F

Speed

  • < 26 m/s

pH

  • 0 to 14

Fluids

  • For All Fluids

Material

  • Rotary Machines

Composition

  • PTFE

  • All Industries
