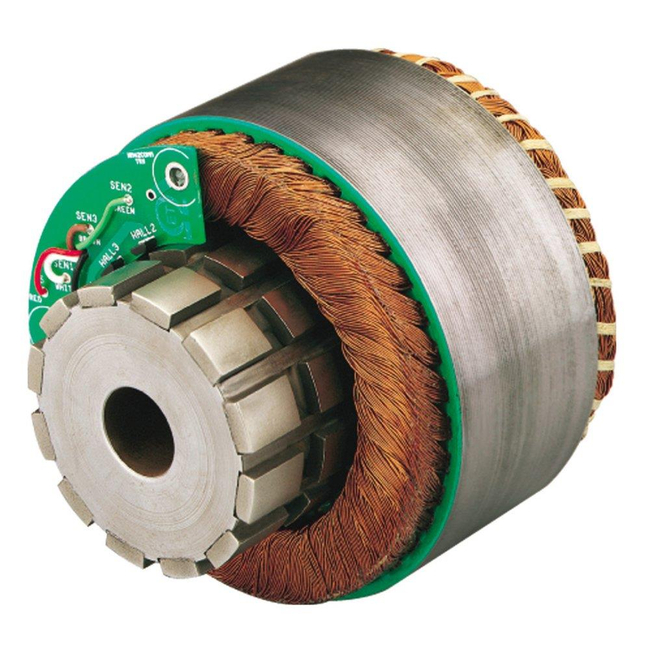

Frameless Low Voltage Servo Motors - K Series (CE Certified)

Brand: Parker Hannifin

Frameless servo motors provide higher dynamic stiffness by eliminating the compliance of shaft attachments.

The construction of Parker's K-series Frameless Servo Motor Kits gives equipment designers the advantages of lowered costs, increased reliability and improved performance.

Frameless Kit Motors are the most cost-effective direct drive servo motor solutions available.

Kit motors save space in applications because the couplings, motor mounting brackets and extra bearings you would find in coupled drive construction are eliminated.
Features
  • Low voltage
  • Compact dimensions and robustness
  • Large hollow shaft
  • Direct drive: accurate and dynamic motion
  • Integrated Hall Effect sensor as an option
  • Higher stiffness of the system
  • Simple, light and compact machine design
  • no coupling systems needed
  • Global cost reduction
  • Increased reliability and reduced maintenance
  • Integration assistance

Specifications

Approvals & Certifications

  • CE Marked

Continuous Power Range

  • 0.06 to 2 KW

Continuous Torque (In/Lbs)

  • 0.6 to 203

Continuous Torque (Nm)

  • 0.07 to 23

Cooling Method

  • Natural Convection

Feedback Device

  • Hall Effect Sensor / Resolver / Absolute Encoder (EnDat, Hiperface) / without Sensor

Frame Size

  • 32 mm / 44 mm / 64 mm / 89 mm / 178 mm

Holding Brake

  • Optional

Input Supply Voltage

  • Up to 155 V Bus DC / 115 Vac / 240 Vac (Only for K178)

IP Protection Rating

  • IP00

Motor Pole Count

  • 4 (K032) / 6 (K044) / 8 (K064) / 12 (K089) / 18 (K178)

Parker Drive Compatibility

  • VIX / Compax3 / AC890SD

Peak Torque (In/Lbs)

  • 2.3 to 717

Peak Torque (Nm)

  • 0.26 to 81

Rated Speed (rpm)

  • Up to 10000

Shaft Type

  • Hollow Shaft (ID: 7.62 - 95.74 mm)

  • Medical
  • Hand Tool
  • Packaging Machinery
  • Rotating Table
  • Special Machines
  • Pump
  • Compressor
